AMD Socket F (Socket 1207) Motherboard Picture?

Discussion about AMD CPU Motherboards

AMD Socket F (Socket 1207) Motherboard Picture?

Postby Apoptosis » Wed Nov 09, 2005 7:50 pm

http://tweakers.net/nieuws/39753

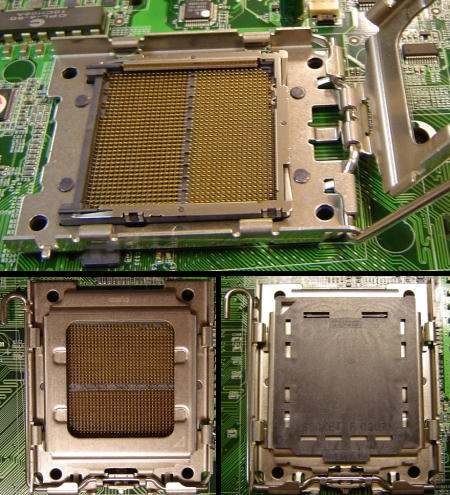

The Socket 1207 or Socket "F" Spy Photos:

AMD has gone to a pinless processor?? Can it be?

Rumors are floating around that this socket supports DDR II 533, 667 and 800MHz memory speeds. No word on whether or not it actually integrates a PCIe controller.

What you think?
User avatar
Apoptosis
Site Admin
Site Admin

Posts: 32944
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri

Postby gvblake22 » Wed Nov 09, 2005 10:16 pm

So would this be the DDR2 server platform?
User avatar
gvblake22
Legit Extremist
Legit Extremist

Posts: 1111
Joined: Thu Feb 17, 2005 9:39 am
Location: Northern Michigan

Postby NAiLs » Thu Nov 10, 2005 12:02 am

holy crap is that a lot of pins!
"Bow down before the one you serve! You're going to get what you deserve!" - |\| | |/|
NAiLs
Legit Extremist
Legit Extremist

Posts: 868
Joined: Tue Apr 20, 2004 12:46 am
Location: WI

Postby Kerii » Thu Nov 10, 2005 1:25 am

NAiLs wrote:holy crap is that a lot of pins!
I counted 1143 pins. :lol:

((2 x 16) x 36) - 9 = 1143. :mrgreen:

Yes, I have something better to do, but I just don't feel like doing it. :rolleyes:
Last edited by Kerii on Thu Nov 10, 2005 1:25 am, edited 1 time in total.
Kerii
Legit Extremist
Legit Extremist

Posts: 416
Joined: Sun Oct 02, 2005 5:07 pm

Postby Apoptosis » Thu Nov 10, 2005 1:25 am

Blake, This socket is solely for the server processors.

try again on the pin count!

Last edited by Apoptosis on Thu Nov 10, 2005 1:28 am, edited 1 time in total.
User avatar
Apoptosis
Site Admin
Site Admin

Posts: 32944
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri

Postby Kerii » Thu Nov 10, 2005 1:27 am

Aww crap. Well, at least it's easier to tell them apart from one another with the higher res. :mrgreen:

Ok, let me try again, lol.

((2 x 17) x 36) - 11 = 1213? :mrgreen:

It's really hard to see on the right side what with the shadows. :|

It can't be 1207, that would be too obvious. :P :lol: :mrgreen:

Computer hardware is supposed to by cryptic and confusing! :rolleyes:
Kerii
Legit Extremist
Legit Extremist

Posts: 416
Joined: Sun Oct 02, 2005 5:07 pm

Postby TheGeekMistress » Tue Feb 14, 2006 3:18 am

w0w, lots-0-pins

and you're right, it isn't going to be our next desktop design.

the new platform will be:

M2 940pin 333mhz HT Bus (DDR667); Rev.F memory controller utilizing DDR2-667 system ram; new chipset; dual core cpus; Dual GPU video cards in Dual Channel true x16 SLI or Crossfire PCIe bus.

the added bandwidth will alleviate the bottlenekkin we're already seeing from the 939/nf4/DDR1 platform while using Dual x8 SLI or Crossfire setups. this is part of the reason that you can run a single PCIe vid card using either x16 or x8 bus and see little to no difference in performance; as well as not seeing any major mobos in use that support true dual x16 PCIe vid bus for SLI/Crossfire. the bottleneck won't allow anymore data to flow thru the chipset and cpu.

the last 939 cpu and chipset has been made, it's the thing of the past... now we're on to a whole new world :)

TGM
+ DFI LanParty-UT NF3 250GB skt754
+ Bios Rev. TMOD's 06/23/2005
+ A64 Newark Mobile 4000+ @ 5000+ (9x341) 3070mhz | Idle 30C Load 39C
+ Asetek Waterchill BIX Dual
+ 2x512 G.Skill 1GBLA TCCD @ DDR512 (CPUz 256mhz 2.0-3-3-6-1T)
+ XFX 7800GS OC'd to 460/1500
+ SATA150 2x WD360Raptors NVRaid RAID-0
+ 21" Hitachi CRT
+ Cooler Master CMStacker case
+ Enermax EG651P-VE(FMA)
User avatar
TheGeekMistress
Legit Fanatic
Legit Fanatic

Posts: 227
Joined: Tue Feb 14, 2006 12:52 am
Location: SW Michigan

Postby vets » Wed Mar 01, 2006 1:39 pm

Kerii wrote:It's really hard to see on the right side what with the shadows. :|


It is, it is hard to see. Zoooooooooming in ...



More Socket-F here:
http://www.dailytech.com/article.aspx?newsid=958

More on CPU sockets here:
http://en.wikipedia.org/wiki/CPU_socket

er' ruf

On the Internet, nobody knows that you're a dog.
User avatar
vets
Legit Enthusiast
Legit Enthusiast

Posts: 28
Joined: Tue Feb 28, 2006 2:45 pm
Location: In the Dog House
