Ghetto Server

Want to show off that smoking system or your latest creation?

Ghetto Server

Postby skier » Sun Dec 30, 2012 8:00 am

So I am building a server to run as a file access, WDS, WSUS, Domain controller, DHCP, DNS, and Print server to play around and get some experience with for work so I can move on up, and here is what it is built on:

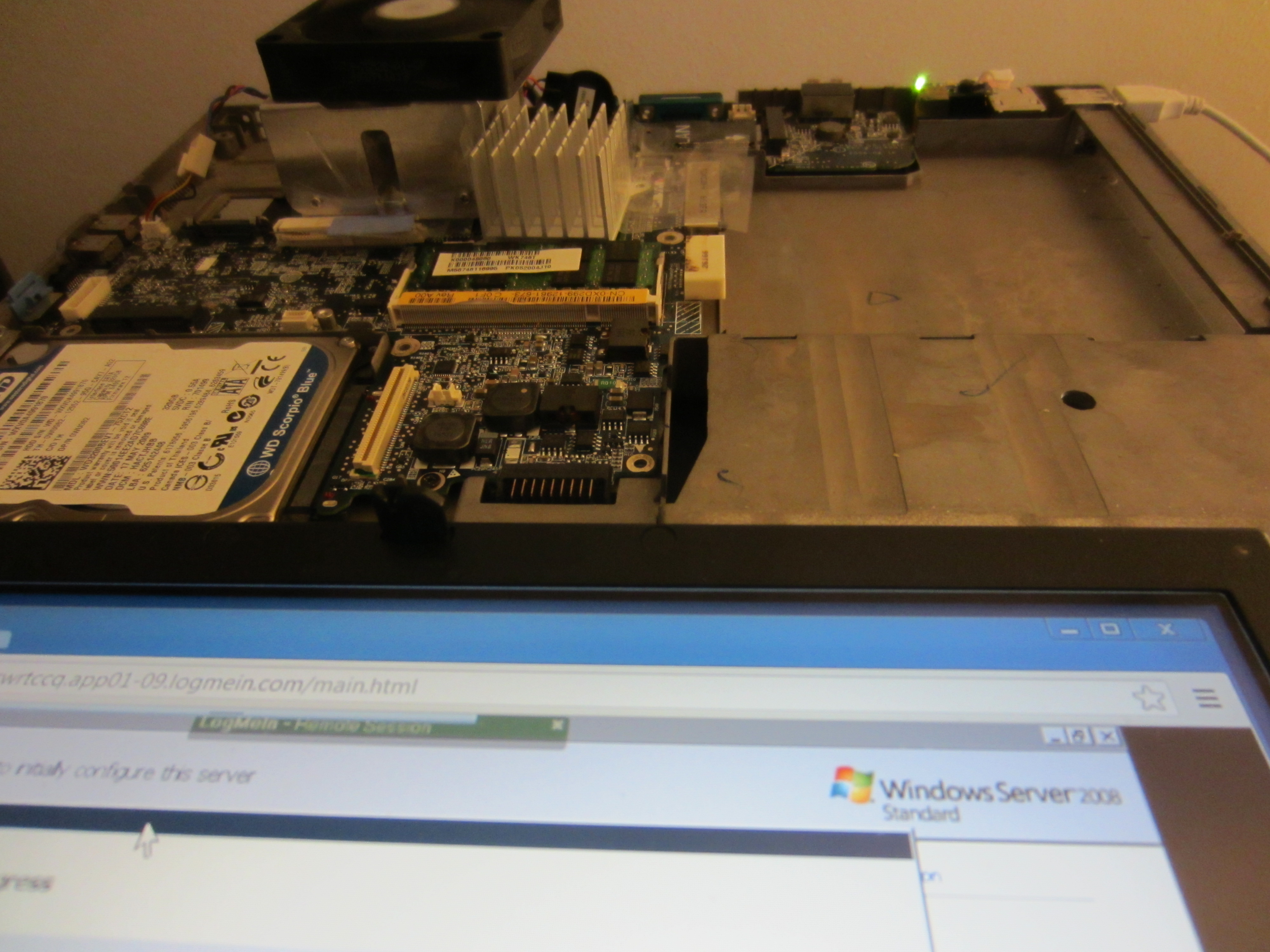

It is a Dell Latitude D620 1.6Ghz CoreDuo stripped of everything but the board RAM and Hard drive. With the server OS it was running at 85-100C even cleaned up and with new thermal compound because the stock heatsink was not working right, the heatpipes weren't transferring heat to the actual heatsink. with the Athlon XP heatsink and a random NB heatsink it idles at 25C and loads at 35C. not a bad temp change!

The main focus of the built is do what I want it to- while just sipping power 24/7. I will hook it up to the power monitor today to compare it to an Optiplex 755 E7400 system I will have under my computer desk that the D620 will sit on top of (will use the E7400 system if power consumption is similar as I can add a Raid Controller to it and make it a real File server with redundant backup)

Also the monitor you are seeing is an oldschool Lenovo X41 tablet (the one with the Pen-only touchscreen) that was being thrown away with about 35 others at work :D
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups
User avatar
skier
Moderator
Moderator

Posts: 4450
Joined: Mon Mar 26, 2007 3:29 pm
Location: Maine

Re: Ghetto Server

Postby Apoptosis » Sun Dec 30, 2012 8:05 am

Ghetto, but should work and not break the bank!

Is the HSF just sitting on the CPU? Be careful there!
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!
User avatar
Apoptosis
Site Admin
Site Admin

Posts: 32986
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri

Re: Ghetto Server

Postby skier » Sun Dec 30, 2012 8:20 am

Apoptosis wrote:Ghetto, but should work and not break the bank!

Is the HSF just sitting on the CPU? Be careful there!


it is mostly just sitting, but I have clear packaging tape protecting the components around the CPU and NB, and they are held in place with Ceramique and more packaging tape. As long the system stays right side up it should be all set ;)

And with the Ceramique over time it will only get more firmly in place

I think the most ghetto part is the mini 3-pin fan header to standard desktop 3-pin connector lol just stripped the wires and fed them in, the other option is a USB cord that I stripped. unfortunately either option is still only 5v.
-Austin
