Quanta SW1 14" i945GM Notebook Barebones For $465

Postby Apoptosis » Thu Jun 08, 2006 9:29 am

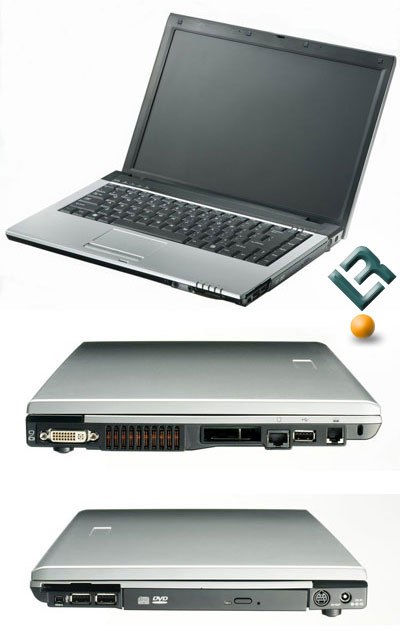

I just saw that mwave.com is carrying the Quanta SW1 on their site, but the have it listed under another name. MWave is calling it the INTEL-VBI SW1, but don't let the name confuse you it's the Quanta SW1 and this notebook is in the Intel CBB program and uses the Intel 945GM and should be Merom and Yonah ready.


Quanta SW1 Features:
# Intel 945GM/940GML + ICH7M

Main Memory:
# Zero on board and two SO-DIMM memory sockets
# 256MB to maximum 2GB 400/533/667MHz DDR2 SDRAM

LCD Display:
# 14.1"W TFT-LCD XGA,1280x800

# Intel 945GM/940GML Integrated graphics controller
# Intel Graphics Media Accelerator (GMA) 950

Hard Disk Drive:
# One 2.5" 9.5mm PATA HDD 5400rpm
# Support 4200/5400rpm PATA HDD
# Supported capacities of 40/60/80 GB

Optical Disk Drive:
# One modularized 5.25”/12.7mm optical storage device, choices of
-24/10/8/24X Combo CD-RW+DVD (option)
-8/4/8X DVD Dual RW Double Layer(Option)

Modem & Bluetooth:
# 56K S/W Modem ,V.90/92 support
# Bluetooth : USB Interface

# Ethernet 10/100/1000M Base T on board
# Support dual band antenna for WLAN

Interface I/O Ports:
# 1 IEEE 1394
# 1 PCI Express Card Bus Type II
# 2 Audio jacks: Microphone-in/Headphone out(SPDIF
# 1 S-Video port
# 3 USB ports (v2.0)
# 1 RJ11 connector for Modem
# 1 RJ45 connector for Ethernet
# 1 DC-in

# Built-in High Definition Audio, 2 Channel
# Built-in two stereo speakers
# Array Microphone

# 86-key US/87-key EU/90-key JP with Windows function keys

Pointing Device:
# Built-in touch pad.
# 2 click buttons
