Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Thu Dec 15, 2011 9:48 pm
by jj_Sky5000
Happy Holidays,

My oringinal Idea for the case mod, was to re mod this NZXT Vulcan micro-atz case all i was going to do was Batman etching on the window for my 7 year old son, Just a little weekend project, the ultimate goal was to make a nice little Lan case ,but when i started getting a few more ideas came to mind .

I very thankful for Biostar, Intel and NZXT . With out there support these are just visions on paper. I showed my friend at Boistar the progress of teh case and he ask to showcase it in Vegas for CES.






I started working on the side panel first to replace it with plexi.



making the window opening bigger with a dremal tool



all is left is to is a few places to File.

Next up to see how it look on the case


removing the rivots and the disassemblyhas begun


6 differnt grades of sand paper for the finish


Re: Batman : Arkham City CES 2012 Build

Posted: Thu Dec 15, 2011 10:03 pm
by jj_Sky5000
Ok brought out the heavy duty paint stripper!!!! Yea thats a airplane on the can, alwasy use proper Ventilation and a mask or you will feel like your flying !!!


You know its done its job when it starts to peal off


60 Grit !!!

And when the sanding is done


repainted the top fan cover to a metallic silver



Re: Batman : Arkham City CES 2012 Build

Posted: Thu Dec 15, 2011 10:27 pm
by jj_Sky5000
Decided to change the front panel a bit and add a little Batman touch to it.


Fan Cut out


I will be re-using the orginal mesh from the side panel for the front


I had some left over anodized aluminium from my other super secret project

With a scroll Saw and a file you can do amaizing things


all thats is left is have the Rez cut out and add power button and a little polishing

Alot more too do


Thank you again for checking the project out.

Re: Batman : Arkham City CES 2012 Build

Posted: Sat Dec 17, 2011 7:09 pm
by lordvic
Are you going to leave it with the metallic silver colour? If you do, that you be pretty nice (I like it a lot). Really stands out from all the black cases you see these days. :)

Re: Batman : Arkham City CES 2012 Build

Posted: Thu Dec 29, 2011 11:47 pm
by jj_Sky5000
Its all starting to come together down the Final stretch before CES. Primer and paint


More Primer


Decided to cut the top out for a place to fill the watercooling


More Sanding to get the annodized marks removed


Side panel was next , 50 grit,100, 150, 400, 1000, 1500 and 2000 for a finish




Interior of teh Side Panal Black with metal flakes


Small teaser


Thanks for looking

Re: Batman : Arkham City CES 2012 Build

Posted: Fri Dec 30, 2011 10:47 am
by kenc51
Looks great!

Keep posting as we can't wait for the finished results :supz:

Re: Batman : Arkham City CES 2012 Build

Posted: Sun Jan 01, 2012 1:27 am
by camaroguy1998
kenc51 wrote:Looks great!

Keep posting as we can't wait for the finished results :supz:


+1

Re: Batman : Arkham City CES 2012 Build

Posted: Mon Jan 02, 2012 7:29 pm
by jj_Sky5000
Happy New year !!!! Back to Modding

Finishing painting the frame


Started assembly Case feet on first



Adding the rad



Thanks Db for the idea of adding some lights behind the bat should also cast a shadow




My intial thought was glue or double sided tape to attched to teh front panel. but it for my son, I better screw it in. :)

another teaser


Thanks for looking

Re: Batman : Arkham City CES 2012 Build

Posted: Thu Jan 05, 2012 8:13 pm
by jj_Sky5000
Small update before the final photos and off to CES

A big thank to NZXT for Sending me the HALE90 850W Power supply to Showcase in the MOD.

The black and white theme ps went perfectly with the mod



Also another Big Thank you to Biostar supporting the mod as well, By sending the Extreme Edition TH67XE Micro ATX MB



Adding The Blood Red Danger Den waterblock


Black and red going together well




Finished the water cooling loop


A little Batman


Teaser ( its time to Signal Batman)

Thanks again. come back tommorrow for the Finished Photos.

Re: Batman : Arkham City CES 2012 Build

Posted: Fri Jan 06, 2012 8:10 pm
by jj_Sky5000

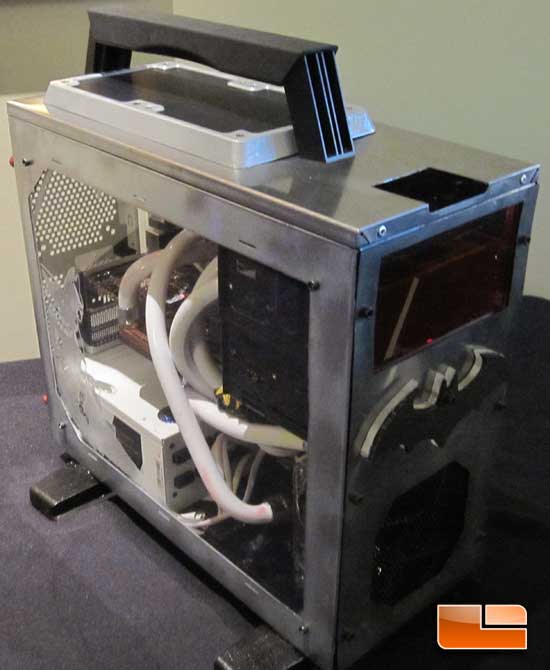

Final Pictures are up!!!!! Thanks again for following the MOD. And a Big Thank you to Intel, Biostar and NZXT If you going to CES and stopping by The NZXT Suite you can check it out.










Re: Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Fri Jan 06, 2012 9:34 pm
by FZ1
Awesome!

Re: Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Sat Jan 07, 2012 10:10 am
by kenc51
Holy batcomputer

Great job!

Re: Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Wed Jan 11, 2012 8:59 pm
by jj_Sky5000
2012 CES Biostar Suite pics then its of to The NZXT Suite for the remainder of the Show






Thanks for looking !!!

Re: Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Wed Jan 11, 2012 9:08 pm
by XstollieX
Saw it NZXT this morning, looks great!

Re: Batman : Arkham City Update 01/06/2012 Finished Pics

Posted: Wed Jan 11, 2012 9:16 pm
by jj_Sky5000
Thank you, I definalty beleiv it looks better in person, and how much stuff was pack in a very little case
