Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Fri Jan 02, 2009 4:51 pm

I finally got the Sherwood RD-7503 A/V Receiver after a two month wait after seeing the original press release. I originally talked about this receiver in this thread, but now that I have it I thought I'd start a new thread. Check out the Sherwood website to read up about this receiver.

Here are some picture of how it shipped directly from Sherwood:

(52.48 KiB) Downloaded 10107 times

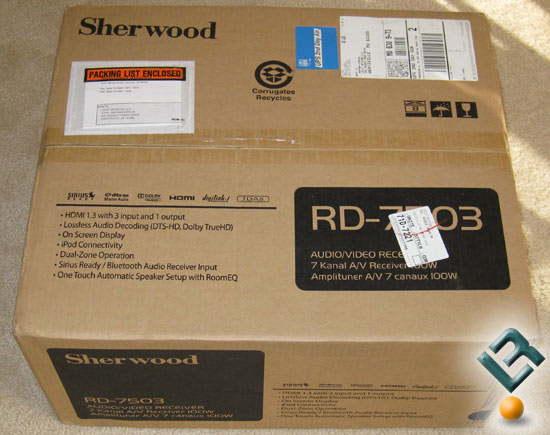

The Shipping Box was fairly good sized and had the main features listed on the box:

HDMI 1.3 with 3 inputs and one output
Lossless Audio Decoding (DTS-HD, Dolby TrueHD)
On Screen Display
iPod Connectivity
Dual-Zone Operation
Sirius Ready / Bluetooth Audio Receiver Input
One Touch Automatic Speaker Setup with Room EQ
(40.09 KiB) Downloaded 10107 times

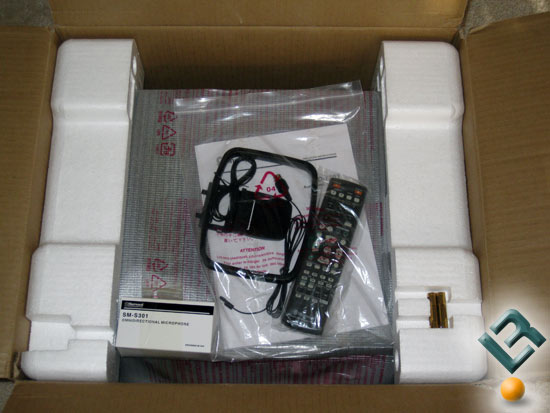

The receiver came with the SM-S301 omnidirectional microphone, remote, batteries, AM/FM antennas and users manual.
(60.51 KiB) Downloaded 10100 times

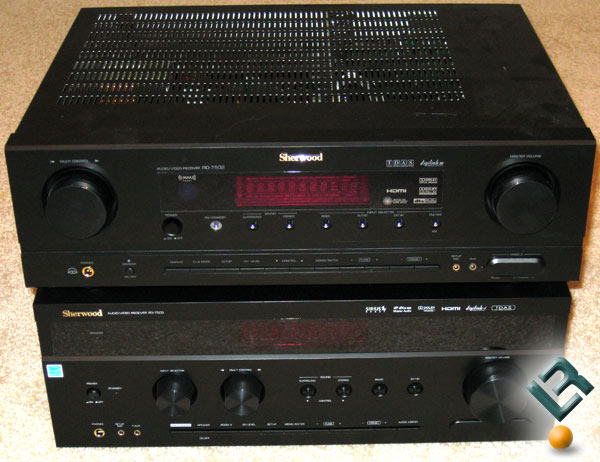

Here is a picture of the Sherwood RD-7502 sitting on top of the RD-7503. The Sherwood RD-7503 has a three knob design, which is new to me. The left knob is the input selector, the middle knob is the multi control knob and the right side knob is the master volume control knob.
(23.09 KiB) Downloaded 10098 times

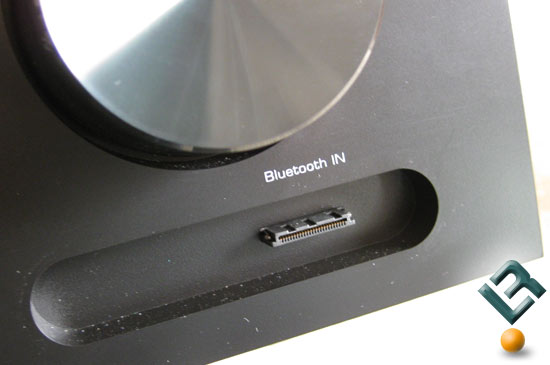

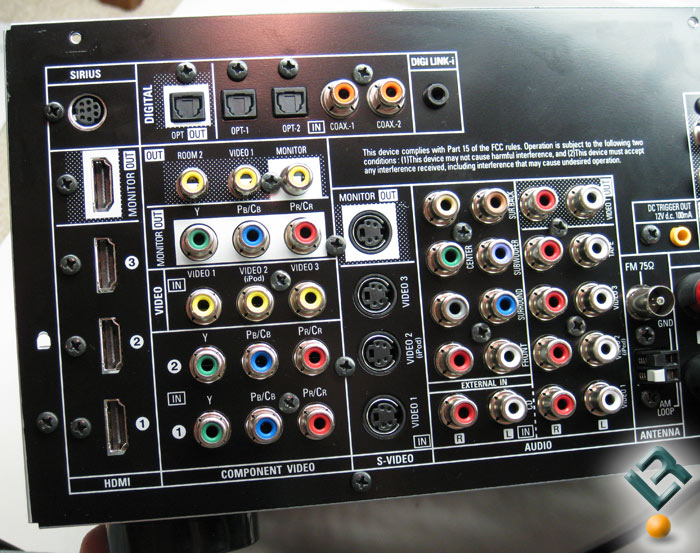

I didn't know that this receiver had a Bluetooth input, but it does on the lower front of the unit. If you purchase the Sherwood Audio Receiver BT-R7 (sold separately) you can enjoy music and audio wirelessly from any Bluetooth source.
(76.11 KiB) Downloaded 10096 times

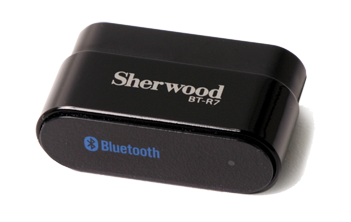

I can't find too much about this receiver other than the picture and this website about it.
(85.77 KiB) Downloaded 10094 times

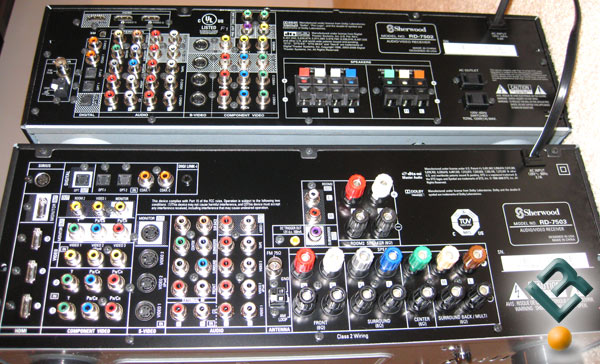

Here is a picture of the back of both the Sherwood RD-7503 and the RD-7502. The new RD-7503 has a Digi Link-i for iPod connectivity (Compatible with Sherwood iPod Dock DS-10 for use with the unit's remote controle). The RD-7502 featured support for XM radio, but this time around the RD-7503 supports Sirius radio with the connector located on the back penal.
(75.34 KiB) Downloaded 10085 times

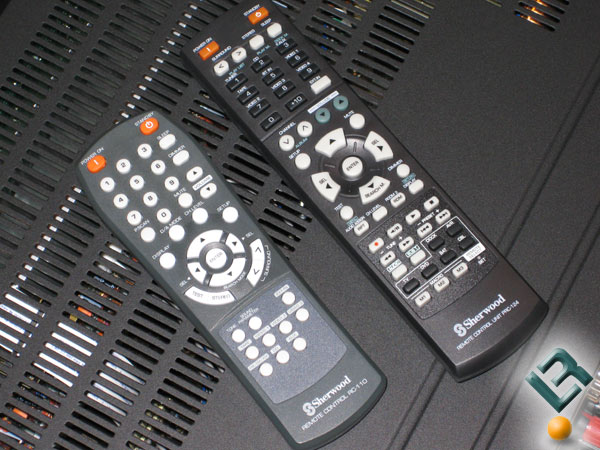

The RD-7503 comes with remote control model PRC-124 that is much nicer than the RC-110 remote that comes with the RD-7502.

Time to go try it out on the home theater!

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Fri Jan 02, 2009 6:12 pm

On the way to the A/V rack I stopped by my lightbox and grabbed a screwdriver and pulled the cover of the RD-7503 to see what was inside:

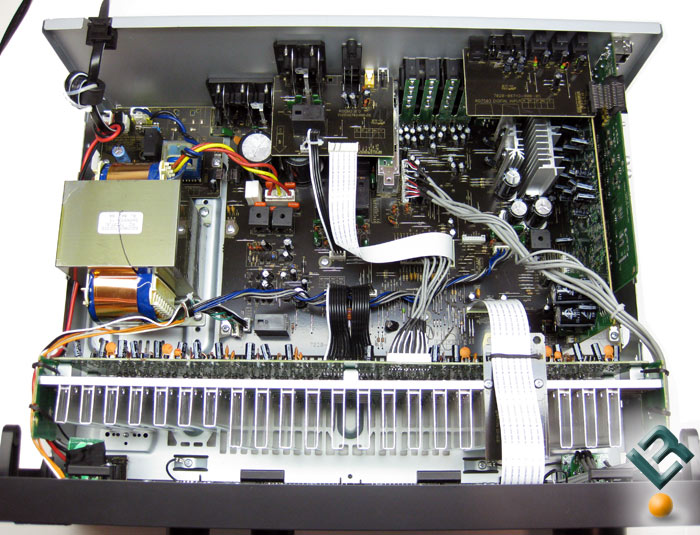

The guts
(110.44 KiB) Downloaded 10066 times

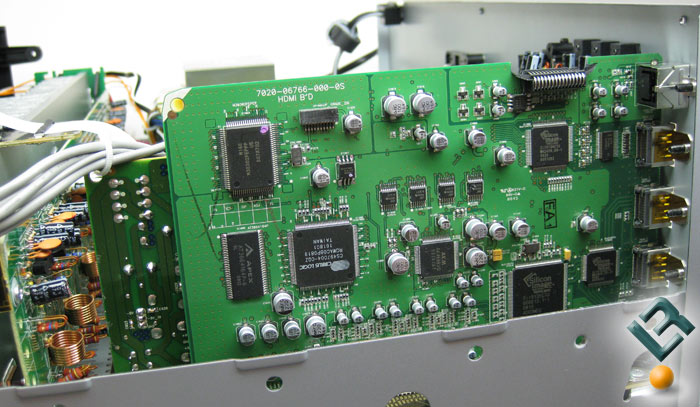

The HDMI 1.3 repeater card with Silicon Image and Cirrus Logic Chips
(85.04 KiB) Downloaded 10060 times

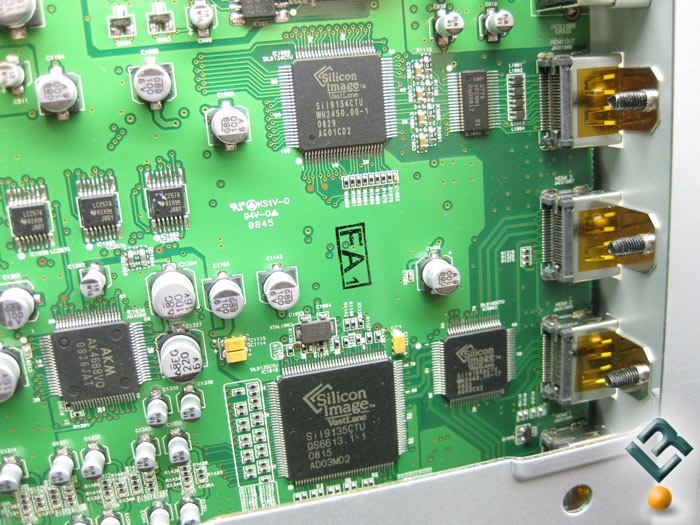

Here is the HDMI 1.3 repeater card, which is the reason I upgraded to this model.

(127.41 KiB) Downloaded 10056 times

The largest Silicon Image chip is the Sil9135 CTU (Rx) and the smaller one on the top right is the Sil9134 CTU (Tx) and the chip all the way on the right is the SiI9185 ACTU. This means that the RD-7503 does have full HDMI 1.3 compliance! If memory serves me correctly these are the same chips that are used in the Sony PS3 and pretty much all HDMI 1.3 video displays (1080p)....

I found a website that said these parts were originally designed in 2007 by Silicon Image when they designed their first-generation HDMI 1.3 switch products (SiI9181 and SiI9185) with integrated HDMI consumer electronics control (CEC) functionality. These HDMI switches enable multiple HDMI source devices to connect to HDTVs with frequency of operation up to 225 megahertz. During 2007, Silicon Image released integrated receivers that deliver HDMI 1.3 HDTV features, including 1080 pixel Deep Color and x.v.Color expanded color gamut, the two-port receiver (SiI9125) and the four-port receiver (SiI9135).

Based off the finding on this page we can see that the Sherwood RD-7503 uses first generation technology from Silicon Image to get the job done.

(120.79 KiB) Downloaded 10054 times

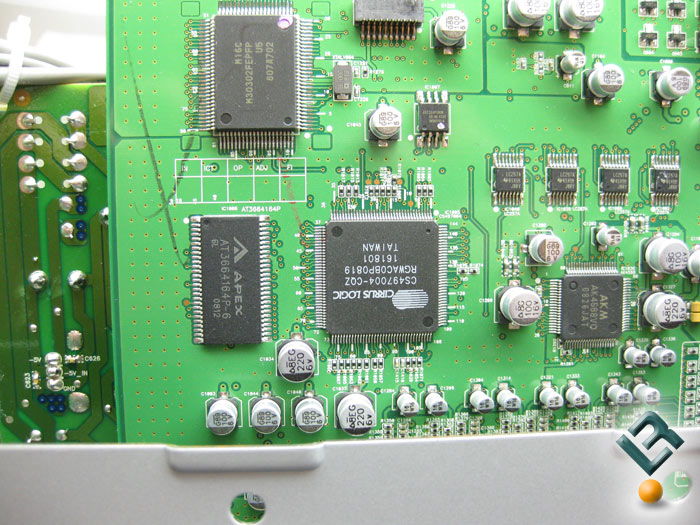

The large chip is the Cirrus Logic CS497004-CQZ, which is the multi-channel decoding DSP (32-Bit HD Audio Decoder) used in the Sherwood RD-7503 receiver. This chip has Dual 32-bit 300 MIPS processors inside for all the decoding needs of the receiver.

User avatar
skier
Moderator
Moderator
Posts: 4450
Joined: Mon Mar 26, 2007 3:29 pm
Location: Maine
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby skier » Fri Jan 02, 2009 6:24 pm

wow, thats got some bells and whistles allright :shock:
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Fri Jan 02, 2009 8:02 pm

yeah it has a fair share and the price was right. Now I wish I had the Bluetooth adapter just so I can connect my Blackberry Bold to the receiver and stream sound directly to the receiver. Not worth the money to do it, but would be fun to try it.

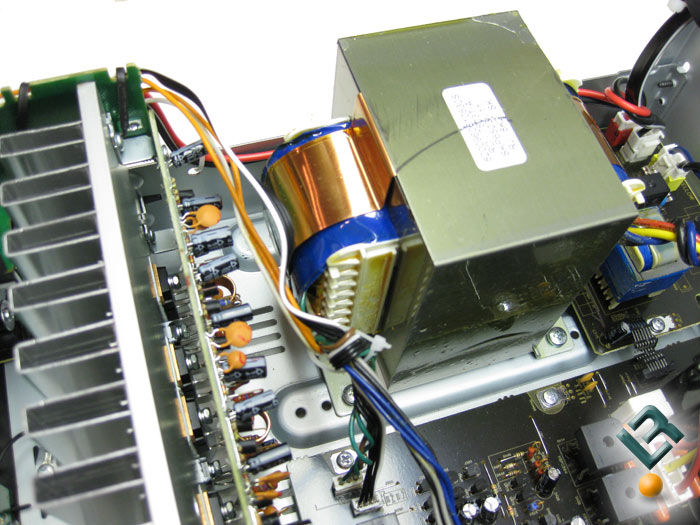

Here are a couple random pictures that I took that I might as well post up:

(93.08 KiB) Downloaded 10035 times

(118.42 KiB) Downloaded 10031 times

User avatar
DaIceMan
Legit Extremist
Legit Extremist
Posts: 1599
Joined: Tue Jul 18, 2006 10:31 pm
Location: Springfield-ish, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby DaIceMan » Fri Jan 02, 2009 10:56 pm

Wish I could afford an HDMI receiver. My old Sony is good for what it is, but the way things are hooked up in my system, it is far from optimal.
Gamer - Thermaltake Element S | PC Power & Cooling Silencer 750 Black | Gigabyte GA-EP45-DS3L | Intel E8400 | Arctic Cooling Freezer 7 Pro | 4GB OCZ Reaper Ram | XFX 8800GTX | Creative X-Fi XtremeGamer | Seagate 7200.10 320GB

HTPC / Folder - Palit 9600GT 1GB Sonic | AMD Phenom 9600 | Corsair DHX 4GB | ECS GF8200A | OCZ StealthXStream 500
Thanks to Palit, AMD, Corsair and ECS for sponsoring the 2008 Folding Give-away!


User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sat Jan 03, 2009 10:05 am

I rented a couple movies last night then came home and hooked up the Sherwood RD-7503 A/V Receiver and quickly found out that the resolution topped out at 720x480, which seems a bit odd. I've had this HTPC for several months and it worked perfectly with the Sherwood RD-7502 A/V Receiver, but the RD-7503 has a HDMI 1.3 repeater in it. I noticed my HTPC was running CATALST 8.10 drivers so I updated the drivers to CATALYST 8.12 in hopes that it might be a driver issue.

(63.28 KiB) Downloaded 9992 times

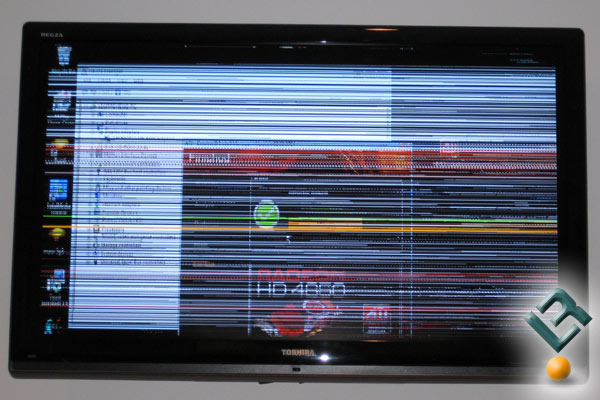

When the driver was updating the screen went crazy like you can see in the picture above, but after a restart it was fine. The only problem is that the resolution on the system still topped out at 720x480.

(61.61 KiB) Downloaded 9988 times

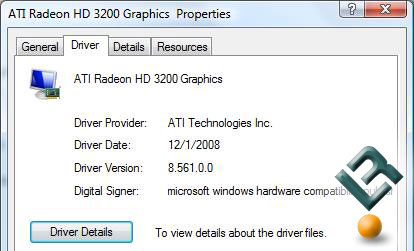

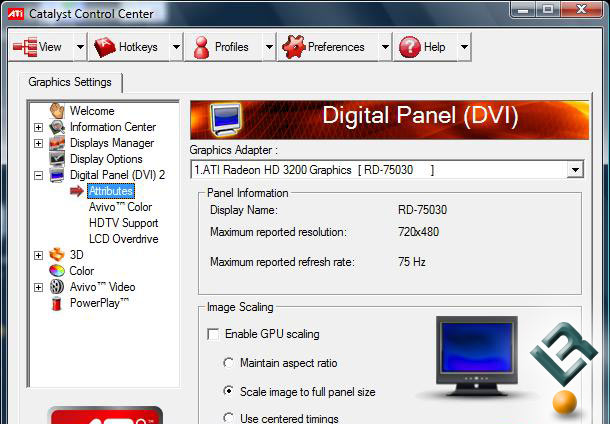

Opening up CATALYST Control Center (CCC) I noticed that the TV display wasn't being detected the A/V Receiver was being detected for some reason. Since this isn't a Pass-Through type receiver and has a repeater in it something isn't detecting the true abilities of the systems. Not sure if it's a driver bug or something with the receiver though.

(24.58 KiB) Downloaded 9987 times


I removed and re-installed the driver after running driver cleaner and still no luck. Anyone ever setup a HTPC through an A/V Receiver with an HDMI 1.3 Repeater before? Little help might be needed on this one.

Last night I just unplugged the HDMI from the A/V receiver and just plugged it directly into the HTPC and everything worked fine, so the HTPC directly to the HDTV connection works great at 1080P. Throw the receiver into the mix and it gets nutty.

User avatar
dicecca112
Site Admin
Site Admin
Posts: 5013
Joined: Mon Mar 01, 2004 10:40 am
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby dicecca112 » Sat Jan 03, 2009 10:50 am

My receiver was similar it wouldn't pass through correctly, except it was a Sony

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sat Jan 03, 2009 11:06 am

what did you do to fix it?

User avatar
dicecca112
Site Admin
Site Admin
Posts: 5013
Joined: Mon Mar 01, 2004 10:40 am
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby dicecca112 » Sat Jan 03, 2009 11:08 am

I didn't, I just connected them directly to the TV. I'll fool around with it again today, see if I get anywhere. I wanted to connect the 360 and the Computer to the receiver and the receiver to the TV, but it never worked.

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sat Jan 03, 2009 11:44 am

dicecca112 wrote:I didn't, I just connected them directly to the TV. I'll fool around with it again today, see if I get anywhere. I wanted to connect the 360 and the Computer to the receiver and the receiver to the TV, but it never worked.


so it was had an HDMI 1.3 repeater in it as well? Can you please post up the model number of the one you had issues with?

I just tried to call Sherwood USA's tech support number, but they are open 8am to 5pm PST Monday - Friday and are closed on the weekends... That doesn't help much.

User avatar
martini161
Mr Awesome
Mr Awesome
Posts: 3185
Joined: Sat Sep 08, 2007 8:27 pm
Location: Cherry Hill, New Jersey
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby martini161 » Sat Jan 03, 2009 12:46 pm

had the same problem with my hdmi reciver :evil:

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sat Jan 03, 2009 2:08 pm

okay, well I played around some more with it over lunch and hooked up my cable box to it and discovered that it too is only outputting in 480... plug the HDMI cable to the TV directly to the HD Cable box and I get 1080i instantly... It has to be a setting in the receiver to change between 480/720/1080, but I can't seem to find it. They have an HDMI on/off setting in the video 1/2/3 setup menu and all that does is enable/disable the sound being pass through.

Looking through the specifications I don't see any mention of 480/720/1080 resolutions, so this is starting to worry me. My frustration level just went up one notch.

User avatar
martini161
Mr Awesome
Mr Awesome
Posts: 3185
Joined: Sat Sep 08, 2007 8:27 pm
Location: Cherry Hill, New Jersey
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby martini161 » Sat Jan 03, 2009 3:19 pm

with mine i couldnt get any display at all as i believe the HDCP keys were getting too jumbled going from my computer to a wall plate down a 35 foot run then into the reciver to the tv. i ended up going straight into the tv then from the tv's optical out into an unused input on the reciver

User avatar
DMB2000uk
Site Admin
Site Admin
Posts: 7095
Joined: Mon Jul 18, 2005 5:36 pm
Location: UK
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby DMB2000uk » Sat Jan 03, 2009 5:47 pm

Is the HDCP handshake not being passed through properly, causing it to limit you to SD res? (as that's SD widescreen for TVs)

Is there an option to force res etc on the HDTV support menu under the screenshot of the CCC you did?

Dan
Image (<- Clickable)

User avatar
dicecca112
Site Admin
Site Admin
Posts: 5013
Joined: Mon Mar 01, 2004 10:40 am
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby dicecca112 » Sat Jan 03, 2009 9:30 pm

Got mine working Nate, well at least the computer, the others not so much. I had to make sure I had it set in the correct device, and it worked out of the box with Vista. Its a SONY STR-DG520

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sat Jan 03, 2009 10:37 pm

ah, k that is good.

I looked up the specs on that receiver and it features HDMI "Pass-through" and doesn't have a repeater in it. My old Sherwood RD-7502 was a "pass-through" model and worked fine also... :(

vbironchef
Legit Extremist
Legit Extremist
Posts: 2301
Joined: Tue Mar 27, 2007 3:35 pm

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby vbironchef » Sun Jan 04, 2009 1:47 pm

Is it possible to just use the DVD player as the 1080i or 1080p upscaler and use the receiver as just the amps? I have a Yamaha rx-z9 receiver and it doesn't have HDMI but I thought I could use the receiver just as the amp and use the DVD player as the conversion. Not the best solution but it would work, right?

User avatar
DaIceMan
Legit Extremist
Legit Extremist
Posts: 1599
Joined: Tue Jul 18, 2006 10:31 pm
Location: Springfield-ish, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby DaIceMan » Sun Jan 04, 2009 2:01 pm

since my receiver is older, I have my DirecTV HD DVR and DVD player jacked into the TV, with audio from TV to receiver, and I notice at times there delay syncs in the audio/video.
Gamer - Thermaltake Element S | PC Power & Cooling Silencer 750 Black | Gigabyte GA-EP45-DS3L | Intel E8400 | Arctic Cooling Freezer 7 Pro | 4GB OCZ Reaper Ram | XFX 8800GTX | Creative X-Fi XtremeGamer | Seagate 7200.10 320GB

HTPC / Folder - Palit 9600GT 1GB Sonic | AMD Phenom 9600 | Corsair DHX 4GB | ECS GF8200A | OCZ StealthXStream 500
Thanks to Palit, AMD, Corsair and ECS for sponsoring the 2008 Folding Give-away!


User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33678
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby Apoptosis » Sun Jan 04, 2009 2:48 pm

vbironchef wrote:Is it possible to just use the DVD player as the 1080i or 1080p upscaler and use the receiver as just the amps? I have a Yamaha rx-z9 receiver and it doesn't have HDMI but I thought I could use the receiver just as the amp and use the DVD player as the conversion. Not the best solution but it would work, right?


I don't have a blu-ray player or anything like that as it's all in my HTPC.

User avatar
martini161
Mr Awesome
Mr Awesome
Posts: 3185
Joined: Sat Sep 08, 2007 8:27 pm
Location: Cherry Hill, New Jersey
Contact:

Re: Sherwood RD-7503 A/V Receiver Pictures and First Thoughts

Postby martini161 » Sun Jan 04, 2009 2:51 pm

ive had a similar issue trying to pass hdmi from my htpc to reciver, ive found the best solution is to bypass the issue. what ive ended up doing is going from my htpc to the tv with hdmi, then from my soundcard to the reciver via S/PDIF. its one more cable to pull, but saved me alot of headaches!
