ASUS P6Z68-V Pro Pictured, Detailed

Postby Apoptosis » Wed Apr 20, 2011 9:20 am

ASUS P6Z68-V Pro Pictured, Detailed

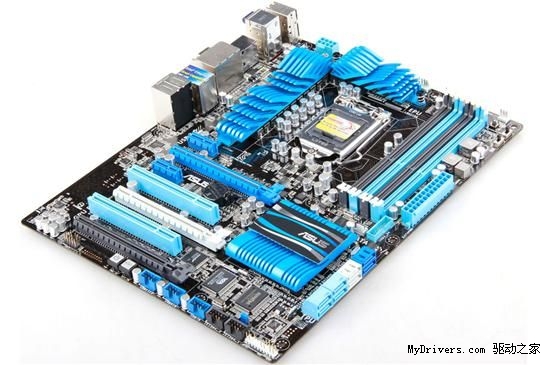

Pictures of ASUS' upcoming upper-mid range LGA1155 motherboard based on the Intel Z68 chipset, the P8Z68-V Pro surfaced on Chinese websites, revealing what comes across as a blend of P8P67's feature-set, and P8H67's display connectivity (which is what Z68 is all about). The new board makes use of a 14-phase Digi+ VRM to power the CPU. Highlights include CPU overclocking features driven by the UEFI BIOS, coupled with Intel Flexible Display Interface, letting you make use of the processor's embedded Intel HD 3000 graphics with Intel QuickSync accelerated video encoding. Further, the board is Lucid Virtu certified, letting you use (and switch between, depending on graphics load) both the integrated and discrete graphics simultaneously, and saving power in the process.

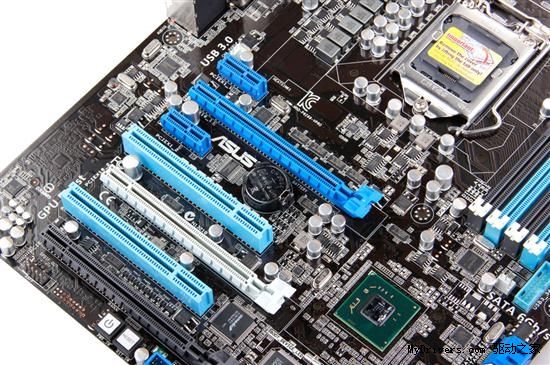

Expansion slots include two PCI-Express 2.0 x16 (electrical x8 with both populated), one PCI-Express x16 (electrical x4), two PCI-Express x1, and two PCI. This wholesome expansion area is backed by a wealth of connectivity options, including four SATA 6 Gb/s ports (two from PCH, two from Marvell controller), four SATA 3 Gb/s internal, and one eSATA 3 Gb/s; display connectivity that includes one each of dual-link DVI, D-Sub, and HDMI 1.4a; 8-channel HD audio with optical SPDIF output; four USB 3.0 (two internal/by header), a number of USB 2.0 ports, FireWire (by header), Bluetooth, and gigabit Ethernet. A number of overclocking features found on P8P67 series motherboards are present.
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

DragonFury
Legit Extremist
Legit Extremist
Posts: 605
Joined: Mon Jan 31, 2011 11:51 am

Re: ASUS P6Z68-V Pro Pictured, Detailed

Postby DragonFury » Wed Apr 20, 2011 9:16 pm

Yeppers and it does look sweet............
