Intel Core i5 540M Arrandale Processor Pictures

Postby Apoptosis » Tue Jan 26, 2010 9:39 pm

I got bored and removed the processor from my notebook tonight:

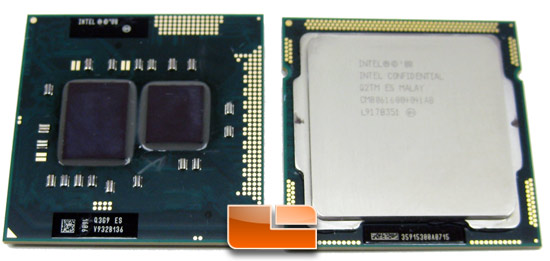

Here is a picture of the Intel Core i5 540M Arrandale Mobile processor on the left with an Intel Core i5 desktop processor on the right.

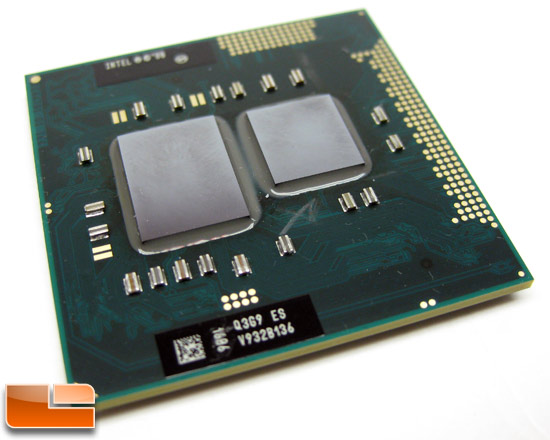

Looking at the GPU and CPU cores makes you think for a second. Hard to believe the GPU is the larger of the two!

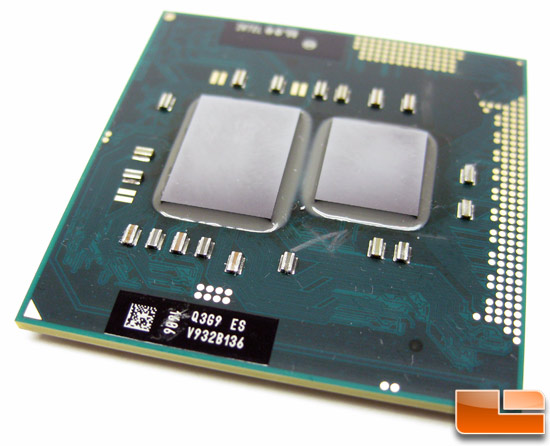

Which side looks best? Strike a pose!

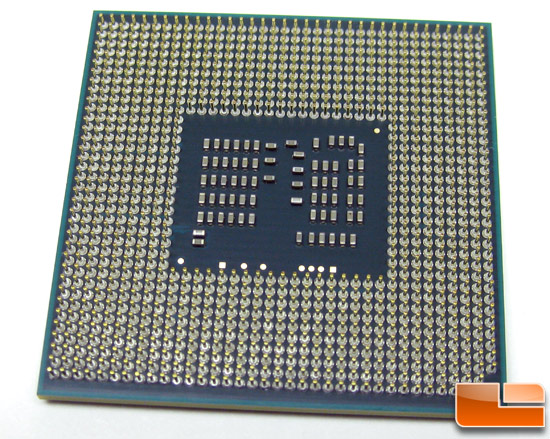

The pins on the bottom of the Intel Core i5 540M Processor.
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
pwcmed
Legit Extremist
Legit Extremist
Posts: 564
Joined: Fri May 02, 2008 2:03 pm
Location: San Antonio, TX

Re: Intel Core i5 540M Arrandale Processor Pictures

Postby pwcmed » Wed Jan 27, 2010 12:37 am

Man I have been eying the HP Envy 15 with this beast and an ATI 5830M to go with it. I'm tired of traveling with my frakking 17" Gateway.
