GIGABYTE Launches Quad SLI-Ready GA-N680SLI-DQ6

Post by Apoptosis »

-- GIGABYTE Launches Quad SLI-Ready GA-N680SLI-DQ6 --
-- Industry’s Most Richly Featured Next Generation Gaming Platform --
Taipei, Taiwan, January 15, 2007 – GIGABYTE UNITED INC., a leading manufacturer of motherboards and graphics cards, today launched the highly anticipated GIGABYTE GA-N680SLI-DQ6 high end gaming platform, featuring the advanced NVIDIA nForce® 680i SLI MCP chipset, support for the record-setting Intel® Core™ 2 Extreme Quad Core processors and delivering the uniquely innovative GIGABYTE 6-Quad technologies.

In addition to native 1333 FSB support for the latest Intel Core™ 2 Extreme Quad-Core processors, the GA-N680SLI-DQ6 features the nForce® 680i chipset with support for SLI technology, including two PCI Express x16 connections and support for an additional PCI Express x8 connection, allowing users to add a standalone physics graphics processor for an even greater boost of graphics performance. The GA-N680SLI-DQ6 also supports NVIDIA LinkBoost technology, which automatically increases bandwidth up to 25% when select GeForce graphics cards are detected, delivering enhanced system performance and maximum overclocking ability.

Ensuring the highest levels of gaming performance with support for high dual channel DDR2 800 memory architecture, the GA-N680SLI-DQ6 delivers an additional boost in memory performance with support for NVIDIA SLI-Ready memory with EPP technology for one-click access to enhanced memory settings for unlocking even higher levels of memory performance up to 1200MHz. The GA-N680SLI-DQ6 makes your gaming experience come further alive with 8 channel High Definition audio support, delivering the highest levels of sound clarity.

Extending GIGABYTE’s range of Ultra Durable motherboards, the GA-N680SLI-DQ6 delivers several advanced GIGABYTE innovations including an All-solid Capacitor design, the revolutionary Crazy Cool2 and Silent Pipe2 cooling technologies featuring an all-new heat pipe design, Quad Gigabit LAN, Quad-Triple Phase power, QuadBIOS™, and Quad eSATA 3Gb/s with RAID functionality.

Quad-Core Optimized
GIGABYTE has implemented optimized Quad-Core FSB routing and a Quad-Triple phase power design to ensure the highest levels of performance and stability from Quad-Core processors. With 4 cores and 2 shared L2 caches, Quad-Core processors provide the industry’s best capability-per-watt solutions, delivering significant performance boosts and extended energy efficiency, making them the ideal choice for multi-media enthusiasts and intensive multi-tasking environments.

Quad SLI-Ready
Supporting NVIDIA Quad SLI™ technology, with true dual PCI Express x16 connectivity for up to 4 of the latest NVIDIA GeForce® 8800 GPUs, GIGABYTE Quad SLI ready motherboards provide flawlessly smooth 3D video rendering and screamingly-fast frame rates. With an additional PCI Express x8 expansion slot, users are able to add a standalone physics graphics processor for a significant boost of graphics performance, taking games to the next level of hyper-realist detail and effects.

Quad Gigabit LAN
Four unique Gigabit LAN connections provide up to 4 x1GB of bandwidth usage, allowing the PC to function as both a home gateway and game server at the same time. Supporting NVIDIA Dual-Net Technology with NV TCP/IP Acceleration and FirstPacket technology, GIGABYTE Quad LAN with Teaming functionality enabled allows 2 sets of 2GB connections to each act as a single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.

Quad-Triple Phase
An exclusive feature found only on GIGABYTE motherboards, this unique design incorporates Virtual 12 Power Phases to deliver steadier power and immediate current to the CPU and memory during heavy system workloads or overclocking. Additionally, Quad Triple Phase helps decrease the working temperatures, enhancing system stability and increasing component lifespan.

QuadBIOSâ„¢
Quad BIOS is a unique GIGABYTE feature that includes DualBIOSâ„¢ and Xpress BIOS Rescue Technology. This combination delivers a safety assurance mechanism that sports a total of 4 copies of BIOS distributed between the Flash ROM, hard-disk and driver CD. This feature helps to reduce the affects of virus attacks or firmware damage and provides multi-layer BIOS protection that assures greater PC platform stability.

Quad e-SATA

Four sets of external SATA ports based on the Serial ATA 3Gb/s storage specification allow effortless sharing and transfer of entertainment content and digital media on external devices. Designed for external SATA devices, Quad eSATA2 delivers enhanced scalability and double the bus bandwidth for high-speed data retrieval and saving On-The-Go.
For additional information, please visit the GIGABYTE website at: http://www.gigabyte-usa.com/Products/Mo ... fault.aspx
Notice they mention support of FOUR NVIDIA GeForce 8800 series graphics cards!
User avatar
ikjadoon
Legit Aficionado
Legit Aficionado
Posts: 72
Joined: Mon Mar 13, 2006 11:17 am

Post by ikjadoon »

Shiz nit! Four Gigabit LAN ports? Four e-SATA ports? Did they leave room for USB???

Four 880GPUs? But they don't mention four PCI-e x16 slots..

I've got to see a picture.

~Ibrahim~
Overdrive PC Core2.SLI:

Core 2 Duo E6600 @ ~3.5GHz, ASUS P5N-E SLI, 4GB of DDR2-770, 8800GTS 640MB @ 621/1836, Western Digital 640GB, LITE-ON 20X, CM Stacker 830, Enermax 620W, Vista Ultimate 64-bit SP1

3DMark '06: 10,302
SuperPI 1M: 15.194s
WEI: 5.7
User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33941
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Post by Apoptosis »

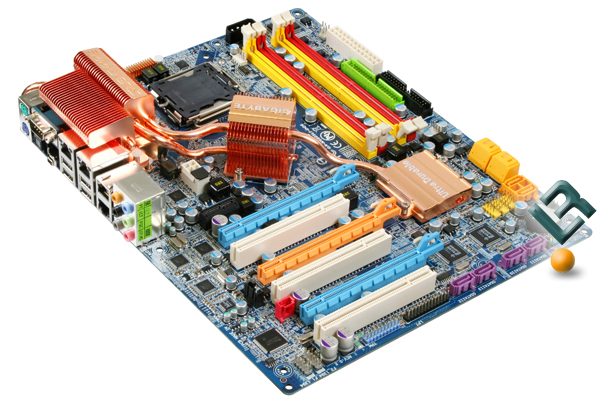

Want an image? Here you go...



Am I missing something or do I only see three PCIe slots? I see the four LAN ports, but only three PCIe slots.

I have sent my Gigabyte contacts in the US and Taiwan an e-mail asking how it supports four 8800 series GPU's with only three slots... I'll let you know. Could this mean that NVIDIA is working on dual-GPU cards with 8800's?
User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33941
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Post by Apoptosis »

Nathan,

Greatly appreciate your kind support.

I will associate with HQ to correct this typo.
Looks like I found a typo...
User avatar
dgood
Legit Extremist
Legit Extremist
Posts: 1190
Joined: Mon Nov 21, 2005 8:54 pm
Location: Mukilteo, WA

Post by dgood »

wow, maybe the boards being designed for the sli of dual gpus and a third physics card. THat would be awesome total of 5 gpu cores.
User avatar
Gamble
Legit Fanatic
Legit Fanatic
Posts: 195
Joined: Tue Nov 21, 2006 3:34 am

Post by Gamble »

That is a lot of room for pricy things to be installed on that board. I like it.

Think NVidia is looking to go for Triple or Quad SLI with 3 or 4 pieces of hardware? If so that is a possibility of 6 to 8 cores....my God what could be done with that?
Once a gamer,
Always a gamer.
Rock on.
-Gamble
User avatar
Digital Puppy
Moderator
Moderator
Posts: 4649
Joined: Tue Apr 27, 2004 12:36 pm
Location: LA LA Land, CA
Contact:

Post by Digital Puppy »

Apoptosis wrote:
Nathan,

Greatly appreciate your kind support.

I will associate with HQ to correct this typo.
Looks like I found a typo...
I think they should send you one of these boards for your troubles.... 8)
Just a little puppy trying to make it in a big digital world.
User avatar
ikjadoon
Legit Aficionado
Legit Aficionado
Posts: 72
Joined: Mon Mar 13, 2006 11:17 am

Post by ikjadoon »

Digital Puppy wrote:
Apoptosis wrote:
Nathan,

Greatly appreciate your kind support.

I will associate with HQ to correct this typo.
Looks like I found a typo...
I think they should send you one of these boards for your troubles.... 8)
I second that, lmao!

Thanks for the picture. Wow, how could one have the need for FOUR Gigabit LAN ports? I mean, honestly. Either way, I'd love to have the board.
Overdrive PC Core2.SLI:

Core 2 Duo E6600 @ ~3.5GHz, ASUS P5N-E SLI, 4GB of DDR2-770, 8800GTS 640MB @ 621/1836, Western Digital 640GB, LITE-ON 20X, CM Stacker 830, Enermax 620W, Vista Ultimate 64-bit SP1

3DMark '06: 10,302
SuperPI 1M: 15.194s
WEI: 5.7
