Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 9:29 am
by Apoptosis
Rexus PST-3 20/24pin Power Supply Tester
The Rexus Power Supply Tester is constructed of sturdy aluminum and allows you to check to see if a power supply is working properly in seconds. An easy to read LCD display on top of the tester shows you the detailed voltage information on each of the voltage rails, and the Power Good (PG) value in milliseconds. Not bad for something that costs ~$20 at numerous retailers.
Article Title: Rexus PST-3 20/24pin Power Supply Tester
Article URL: http://www.legitreviews.com/article/809/1/
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 9:58 am
by GI-JOE
Great read! I might have to pick one up.
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 11:00 am
by smack323
wow that is a great price. if I had one of these I would have easily saved myself $70 or more - upgrading PSUs that were fine
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 11:05 am
by DX
OOOOOOOOOOOooooooo this is a must get tool.
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 11:40 am
by dicecca112
Nate how accurate is this, ie did you verify results with a multi meter?
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Mon Oct 20, 2008 12:20 pm
by Apoptosis
dicecca112 wrote:Nate how accurate is this, ie did you verify results with a multi meter?
Matt,
I did check things with a volt meter and I'll tell you not to toss the volt meter out the door any time soon...

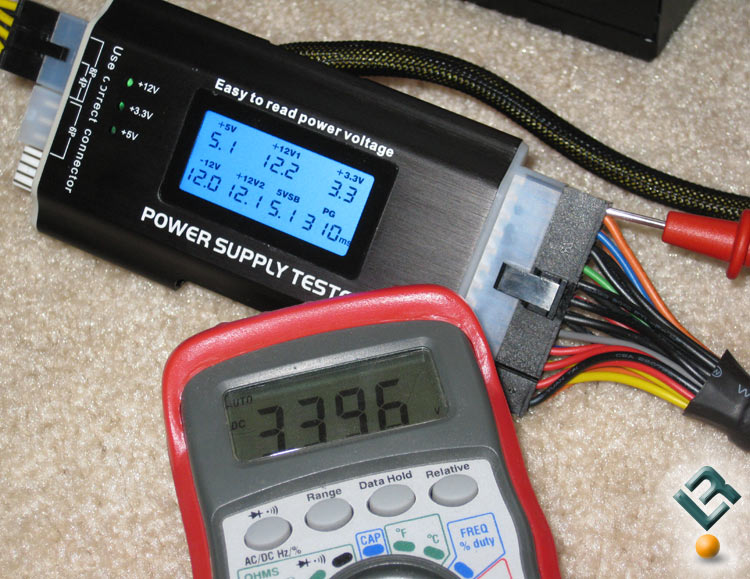

- 3volt.jpg (106.17 KiB) Viewed 5355 times
On the +3.3V rail the Power Supply Tester Showed 3.3V while my Volt meter showed 3.396V.

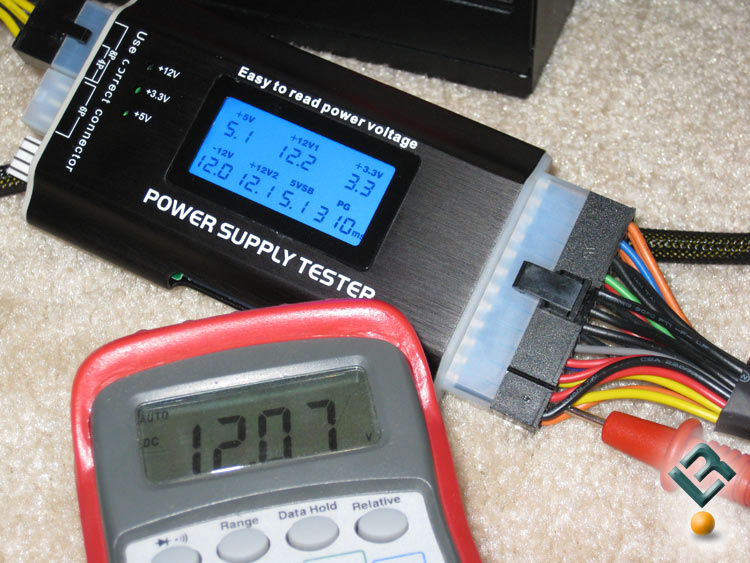

- 12volt.jpg (95.58 KiB) Viewed 5354 times
On the +12V rail the Power Supply Tester Showed 12.0V while my Volt meter showed 12.07V.

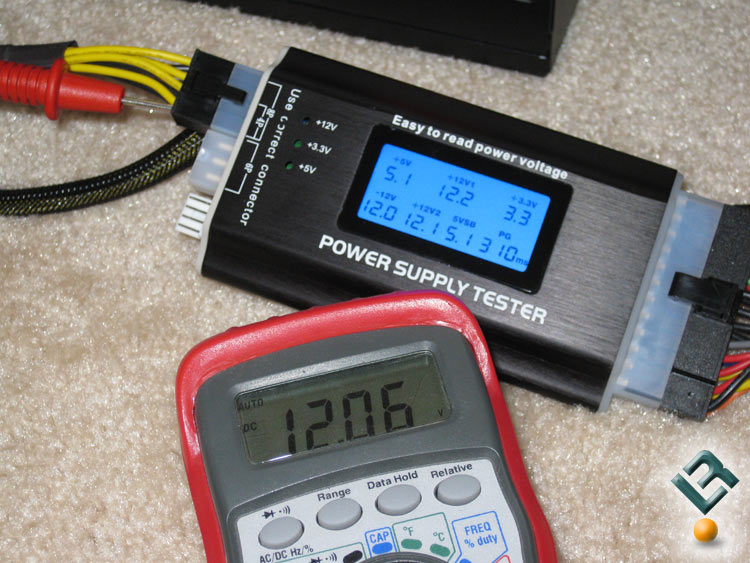

- 12v2.jpg (94.03 KiB) Viewed 5355 times
On the +12V2 rail the Power Supply Tester Showed 12.1V while my Volt meter showed 12.06V, so that one was actually right.
It looks like it's right within 0.1V, which isn't bad for $20... Don't replace the volt meter though.
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Tue Oct 21, 2008 7:38 am
by KnightRid
rounds to the tenths, which in most cases should be good enough, I would think.
I have a tester, but it just has lights on it that show you if it is working - the readout on this one is NICE!
Mike
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Tue Oct 21, 2008 9:15 am
by gwolfman
KnightRid wrote:rounds to the tenths, which in most cases should be good enough, I would think.
I have a tester, but it just has lights on it that show you if it is working - the readout on this one is NICE!
Mike
I agree. I have one that basically says pass/fail, but I'd like to know why and this one might do the trick. How was it on the molex/sata/pcie connectors? Or did you not try any of those?
Re: Rexus PST-3 20/24pin Power Supply Tester
Posted: Tue Oct 21, 2008 9:25 am
by Darkstar
very nice! definitely has a place it the IT toolbox....
