Axle just sent over the PR of the AXLE Radeon HD6870 1GB DDR5 256bits GPU. The part number on this new card is AH-687/1GD5P6D2IP2

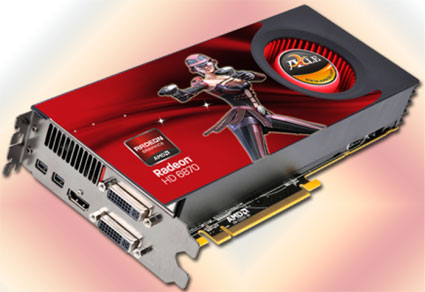

- axle_radeon_6870.jpg (28.75 KiB) Viewed 581 times
“Axle’s new HD 6870 / 6850 has defined a new standard for the home video-gaming experience. Equipped with HDMI 1.4a and DisplayPort 1.2, the high definition Stereoscopic 3-D effect is never the same and comparable to any other products available in the market. The new HD3d technology, the AMD Eye-Definition technology, the AMD EyeSpeed Visual Acceleration Technology sculpture the innovative new HD6800 series with unimaginable performance and state-of-the-art features.
Specifications:
- ATI Radeon™ HD 6870 GPU
- 1120 Stream Processors
- 1GB DDR5
- 256-bit memory bus
- Core Clock: 900MHz
- Memory Clock: 4200MHz
- PCI Express 2.1 x16 bus interface
Maximum Resolution
- Analog: 2048x1536
- Digital: 2560x1600
Dimensions
- Height: 111mm
- Lenght: 255mm
Inside the box
- Driver CD
- User Manual
- Installation Guide
Features:
- ATI CrossFireX™ multi-GPU technology
- ATI Eyefinity multi-display technology
- ATI Stream acceleration technology
- ATI Avivo HD Video & Display technology
- ATI PowerPlay™ power management technology
- Unified Superscalar Shader Architecture
Connectors:
- Dual-link DVI
- Single-link DVI-D
- HDMI
- 2x mini DisplayPort
Power Requirements:
- 500-watt power supply recommended
- 151-watt max power consumption
