LIVERMORE, Calif. — Sandia National Laboratories has developed a new technology with the potential to dramatically alter the air-cooling landscape in computing and microelectronics, and lab officials are now seeking licensees in the electronics chip cooling field to license and commercialize the device.
The “Sandia Cooler,” also known as the “Air Bearing Heat Exchanger,” is a novel, proprietary air-cooling invention developed by Sandia researcher Jeff Koplow, who was recently selected by the National Academy of Engineering (NAE) to take part in the NAE’s 17th annual U.S. Frontiers of Engineering symposium.
Koplow said the Sandia Cooler technology, which is patent-pending, will significantly reduce the energy needed to cool the processor chips in data centers and large-scale computing environments. The yearly electricity bill paid by the information technology sector in the U.S. is currently on the order of seven billion dollars and continues to grow.
Dramatic improvements in cooling, other benefits
In a conventional CPU cooler, the heat transfer bottleneck is the boundary layer of “dead air” that clings to the cooling fins. With the Sandia Cooler, heat is efficiently transferred across a narrow air gap from a stationary base to a rotating structure. The normally stagnant boundary layer of air enveloping the cooling fins is subjected to a powerful centrifugal pumping effect, causing the boundary layer thickness to be reduced to ten times thinner than normal. This reduction enables a dramatic improvement in cooling performance within a much smaller package.

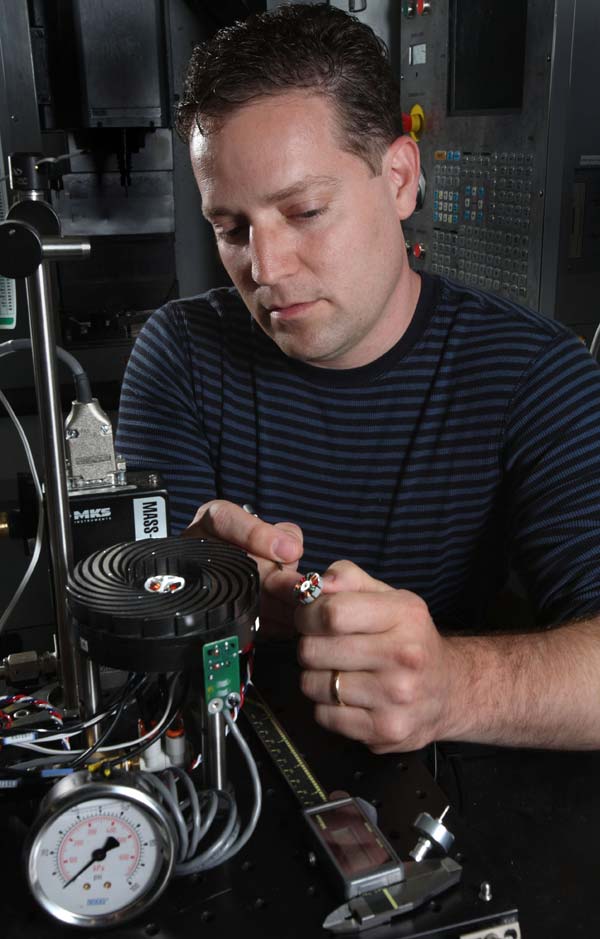

Additionally, the high speed rotation of the heat exchanger fins minimizes the problem of heat exchanger fouling. The way the redesigned cooling fins slice through the air greatly improves aerodynamic efficiency, which translates to extremely quiet operation. The Sandia Cooler’s benefits have been verified by lab researchers on a proof-of-concept prototype approximately sized to cool computer CPUs. The technology, Koplow said, also shows great potential for personal computer applications.

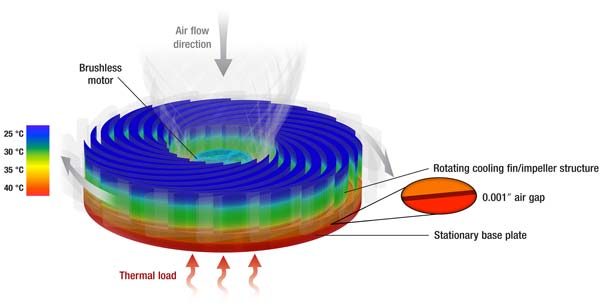

- In this diagram of the Sandia Cooler, heat is transferred to the rotating cooling fins. Rotation of the cooling fins eliminates the thermal bottleneck typically associated with a conventional CPU cooler. (Diagram courtesy of Jeff Koplow) Click on the thumbnail for a high-resolution image.
- cooler2.jpg (18.01 KiB) Viewed 1726 times
Broader energy sector applications
The Sandia Cooler also offers benefits in other applications where thermal management and energy efficiency are important, particularly heating, ventilation and air-conditioning (HVAC). Koplow said that if Air Bearing Heat Exchanger technology proves amenable to size scaling, it has the potential to decrease overall electrical power consumption in the U.S. by more than seven percent.
Companies interested in licensing the Sandia Cooler are invited to review and respond to the solicitation through July 15. The solicitation can be found
here. Although it is first focused on licensing opportunities in the field of electronics chip cooling, Sandia will soon establish a separate process for exploring partnering and/or licensing opportunities in other fields.
A technical white paper on the Sandia Cooler technology can be found here.
Sandia’s work on the cooler technology was funded initially through internal investments. Follow-on funding is also being provided by the Department of Energy’s Office of Energy Efficiency and Renewable Energy (EERE).
Sandia National Laboratories is a multiprogram laboratory operated by Sandia Corporation, a wholly owned subsidiary of Lockheed Martin Corporation, for the U.S. Department of Energy’s National Nuclear Security Administration. With main facilities in Albuquerque, N.M., and Livermore, Calif., Sandia has major R&D responsibilities in national security, energy and environmental technologies, and economic competitiveness.
Sandia media relations contact: Mike Janes,
[email protected] (925) 294-2447
