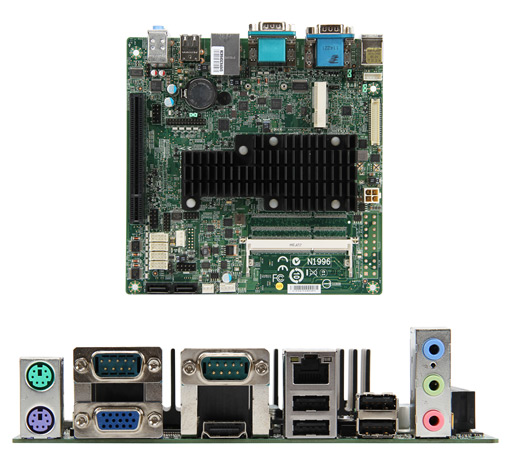

Taipei, Taiwan】 MSI launch MS-9893 with the latest Intel® ATOM™ Platform. This is the multi-display outputs of mini-ITX form factor board with the latest 32nm process technology for the highest HD graphic quality, and offers lower power consumption and enhanced graphic and media performance.
MSI MS-9893 supports multi-display outputs, including single Channel 18/24 bit LVDS, VGA, one HDMI. It has great graphics performance and support for up to 1080P high definition video.MSI MS-9893 is equipped with single-channel DDR3 1066 MHz memory up to a maximum of 4 GB in 1 x 204 SO-DIMM slots. MS-9893 supports D2550(10W) / N2800(6.5W) two SKU, with VGA, HDMI, Video Output: LVDS/ Single CH 24bit by D2550 (LVDS/ Single CH 18bit by N2800). Power Input support, one ATX for D2550, and another is DC-in 12V for D2550 / N2800. I/O, and expansion connectivity, including 6* COM-ports(2 x Real, 4 x Internal), 6* USB2.0(4 x Real, 2 x Internal), and 8*GPIO(4 x GPI, 4 x GPO), one PCI slot and one Mini-PCIe slot could support the m-SATA/wireless function.
