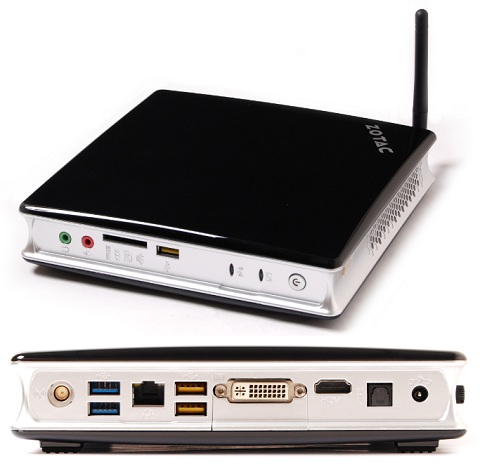

New ZOTAC ZBOX receives greater graphics and processing capabilities without sacrificing energy-efficiency
- zbox-ad06.jpg (46.42 KiB) Viewed 995 times
HONG KONG – Nov. 7, 2012 – ZOTAC International, a global innovator and
manufacturer of graphics cards, mainboards and mini-PCs, today injects the ZBOX with
a performance boost to give the flexible mini-PC greater graphics processing
capabilities thanks to the latest AMD Radeon HD 7340 graphics processor. The latest
performance-boosted ZBOX updates the form factor with greater graphics and
processing capabilities without sacrificing energy-efficiency or the flexible form factor.
“The new ZBOX gives users up to a 10-percent performance boost for even
greater system responsiveness and usability in applications and games,” says Carsten
Berger, marketing director, ZOTAC International. “We also add four high-amperage
USB ports to quickly charge power hungry devices such as tablets and smartphones to
simplify charging multiple devices.”
A media remote is included with the performance-boosted ZOTAC ZBOX for
easy navigation of popular home theater PC applications such as Microsoft Windows®
Media Center and XBMC. The new performance-boosted ZOTAC ZBOX ships as a
barebone (ZBOX AD06) and also available with 2GB of memory and a 320GB hard
drive preinstalled (ZBOX AD06 Plus).
Its time to play with the new performance-boosted ZOTAC ZBOX.
General details
• ZOTAC Injects ZBOX with a performance boost
• ZOTAC ZBOX with AMD Radeon HD 7340 graphics
• AMD E2-1800 APU (dual-core, 1.7 GHz)
• AMD Radeon HD 7340 GPU
• DVI & HDMI outputs
• ZOTAC ZBOX AD06 Plus
o 2GB DDR3
o 320GB 5400RPM HDD
• ZOTAC ZBOX AD06
o 2 x 204-pin DDR3-1333 SO-DIMM slot
o Support 2.5-inch SATA HDD
• 2 x SuperSpeed USB 3.0 ports
• 4 x High-Speed USB 2.0 ports (2 on back panel, 1 on front, 1 on top)
• Gigabit Ethernet, 802.11n WiFi & Bluetooth 4.0 technologies
• High-amperage USB charging capable (yellow ports)
• Bundled MCE-compatible remote w/ USB IR receiver
• Bundled VESA75/100 mount
Specifications:
Product Name ZBOX AD06 Plus ZBOX AD06
SKU ZBOX-AD06-PLUS ZBOX-AD06
Memory 2GB DDR3 2 x 204-pin DDR3 SODIMM
(up to 8GB)
Hard Disk 320GB 5400RPM HDD Support 1 2.5-inch HDD
CPU AMD E2-1800 (dual-core, 1.7 GHz)
GPU AMD Radeon HD 7340
Video Memory Shared Memory Architecture
Display Options HDMI & DVI
Memory Card Reader 6-in-1 (SD/SDHC/MMC/MS/MS Pro/xD)
SATA N/A
Ethernet 10/100/1000Mbps
WiFi Onboard 802.11n WiFi & Bluetooth 4.0
USB Ports 4 USB 2.0 (1 front, 1 top, 2 rear) (high-amperage charging
supported)
2 USB 3.0 ports (rear)
Audio Onboard analog stereo high-definition audio
HDMI audio (bitstream)
Digital Optical S/PDIF
DirectX® Support DirectX® 11 with Shader Model 5.0
Other Features
HDCP: Yes
Software Features
Windows 7 Capability Windows 7 & 8 ready
About ZOTAC International (MCO) Limited
ZOTAC International is a part of PC Partner Ltd. Group. ZOTAC is also one of the largest NVIDIA® graphics cards and
motherboard manufacturer in the world with over 10 years of quality manufacturing experience. The ZOTAC philosophy is
to deliver the latest products at competitive prices without sacrificing quality.
For further information please visit http://www.zotac.com
