Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sat Nov 06, 2010 6:36 am
by Apoptosis

The [email protected] performance of the GTS 450 is rather amazing... I switched over to one as I got bored running the GT240 in my Office PC. Now that it's gotten colder I can run [email protected] without my office getting 85+F during the day. I'm running an overclocked ECS GeForce GTS 450 Black Edition video card that I have manually overclocked faster. I'm using it on my main office PC, which does video & picture editing and is used for most of the day. I also shut down the client for a few minutes here and there when i need to do some tasks on the GPU. Anyway, I hit 14,709 points yesterday. I was amazed by this, cut what amazed me more is that I can't hear the card as the fans are at 30% and the core is a full GPU load and hitting just 37-38C after two days of solid use inside a Corsair 800D PC Case.

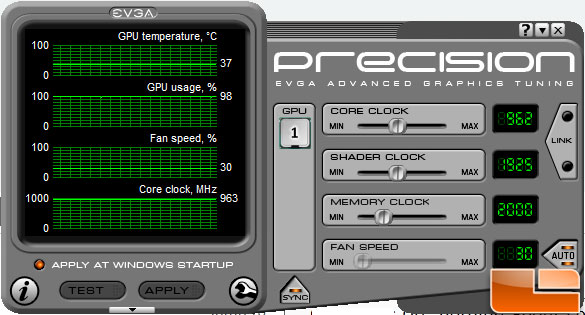

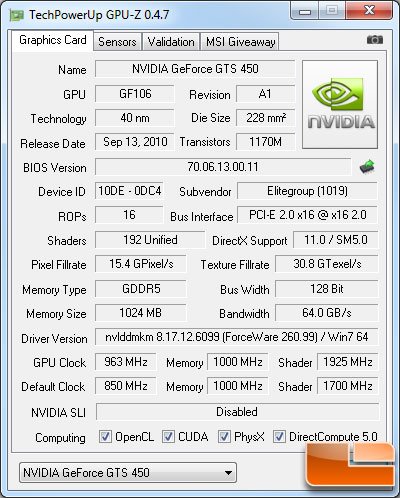

Did I mention the card is overclocked? A stock NVIDIA GeForce GTS 450 runs at 783MHZ core, 1566MHz shaders, 902MHz memory. I've got mine overclocked to 962MHz core, 1925MHz shaders, 1000MHz memory and to be honest they card might have more as I have pushed it to become unstable yet with [email protected]
Just wanted to share with everyone... A GTS 450 has 192 CUDA Cores and when the are overclocked they put down some nice PPD numbers.

Some project Performance Numbers for you...

[email protected] Project: 11248
[11:34:08] Project: 11248 (Run 1, Clone 33, Gen 19)
[11:34:14] Working on 264 Fs_coil
[11:34:14] Starting GUI Server
[11:35:10] Completed 1%
[11:36:07] Completed 2%
[11:37:03] Completed 3%
[11:37:59] Completed 4%
[11:38:55] Completed 5%
[11:39:52] Completed 6%
[11:40:48] Completed 7%
[11:41:44] Completed 8%
[11:42:41] Completed 9%
[11:43:37] Completed 10%
[email protected] Project 10957
[10:04:02] Project: 10957 (Run 0, Clone 43, Gen 4)
[10:04:08] Working on 247 ProG_hpin
[10:04:09] Starting GUI Server
[10:05:02] Completed 1%
[10:05:56] Completed 2%
[10:06:50] Completed 3%
[10:07:43] Completed 4%
[10:08:37] Completed 5%
[10:09:31] Completed 6%
[10:10:24] Completed 7%
[10:11:18] Completed 8%
[10:12:11] Completed 9%
[10:13:05] Completed 10%

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sat Nov 06, 2010 9:33 am
by skier
1925Mhz shaders! my 460 only has 1600MHz shaders and that's when my GPU is at 800

15k is still crazy, need to check how much my 460 gets with a big OC, because i don't think it can get that high!

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sat Nov 06, 2010 2:59 pm
by dicecca112
That's why you riding my ass and showed up on my overtakers list.

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sat Nov 06, 2010 4:20 pm
by geokilla
Got the HFM screenshot? I'm interested to see it =). Also this shows that more CUDA cores =! better

So this overclock is at stock voltages?

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sat Nov 06, 2010 5:41 pm
by skier
im running just my 460 @ 1700 shaders now, let's see how she falls

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sun Nov 07, 2010 3:49 pm
by skier
skier wrote:im running just my 460 @ 1700 shaders now, let's see how she falls
okay, just got a few minutes to reboot my system and flash my 460 (modified max vcore and fan control), now i'm at 900 core/1800 shader

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Sun Nov 07, 2010 5:44 pm
by skier
heres my HFM @ 1800 shaders
post yours up nate because im sure we're all curious just how that compares folding-wise having almost 150 Shader Cores less than mine!

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 08, 2010 1:30 pm
by camaroguy1998
skier wrote:heres my HFM @ 1800 shaders


post yours up nate because im sure we're all curious just how that compares folding-wise having almost 150 Shader Cores less than mine!
+1
I definitely want to see what both of these cards can do......
The better of the two will be going into one of my folders!(maybe 2!?!)

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 08, 2010 4:48 pm
by spitter
skier wrote:heres my HFM @ 1800 shaders
post yours up nate because im sure we're all curious just how that compares folding-wise having almost 150 Shader Cores less than mine!

I am getting the hfm ppd count on my 2 gts 450s 15.6kppd shaders are at 1850 tho!! tpf .51
http://spreadsheets.google.com/pub?key= ... jQmc&gid=0

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Wed Nov 10, 2010 10:02 am
by spitter
Project ID: 10977
Core: OPENMMGPU
Credit: 925
Frames: 100


Name: mircogpu
Path: \\Aaaaaaa\[email protected]\
Number of Frames Observed: 99

Min. Time / Frame : 00:00:50 - 15,984.0 PPD
Avg. Time / Frame : 00:00:50 - 15,984.0 PPD


Best wu so far, 1900 shaders..

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Wed Nov 10, 2010 1:28 pm
by skier
so folding-wise, 460-1024=460-768=450 give or take some frequency

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Thu Nov 11, 2010 5:32 pm
by skier
45sec TPF is the best that any GTX 460 can do with the current 912 units, and that's with a monster overclock, so at 51sec TPF the GTS450 is a steal for folding

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Thu Nov 11, 2010 6:58 pm
by spitter
Project ID: 10974
Core: OPENMMGPU
Credit: 925
Frames: 100


Name: mircogpu
Path: \\Aaaaaaa\[email protected]\
Number of Frames Observed: 297

Min. Time / Frame : 00:00:49 - 16,310.2 PPD
Avg. Time / Frame : 00:00:49 - 16,310.2 PPD


2000 shaders, best so far, still working it up, now under water at 29c under load!!!!

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Thu Nov 11, 2010 8:51 pm
by spitter
EVEs out at 2100 shader and max voltage, 2000 stable tho and will post best wu numbers. all 912,925 wu are above 15kppd, the best should be about 16.7k.

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Fri Nov 12, 2010 2:52 am
by spitter
Project ID: 10955
Core: OPENMMGPU
Credit: 925
Frames: 100


Name: amdgpu
Path: \\A\[email protected]\
Number of Frames Observed: 300

Min. Time / Frame : 00:00:51 - 15,670.6 PPD
Avg. Time / Frame : 00:00:54 - 14,800.0 PPD


Name: mircogpu
Path: \\Aaaaaaa\[email protected]\
Number of Frames Observed: 300

Min. Time / Frame : 00:00:47 - 17,004.3 PPD
Avg. Time / Frame : 00:00:56 - 14,271.4 PPD
Cur. Time / Frame : 00:00:47 - 17,004.3 PPD
R3F. Time / Frame : 00:00:47 - 17,004.3 PPD
All Time / Frame : 00:00:47 - 17,004.3 PPD
Eff. Time / Frame : 00:00:48 - 16,650.0 PPD


Best 2000 shaders, 17kppd.

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 15, 2010 9:40 am
by Bwall
I might have to pick one of these up for my HTPC, the folding numbers look great and this card can bitstream HD Audio.

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 15, 2010 10:50 am
by Apoptosis
Yeah the past 5 days I am getting 15,600 PPD with the GTS 450 and it's running 38C and the GPU fan can't be heard over my CPU water cooling loop.

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 15, 2010 1:52 pm
by Bwall
I was so close to getting a GTS 450 while I was out picking up my CPU....I avoid Microcenter as much as I can because it's just too tempting to spend money there.
Looking at it strictly from a PPD view I might take the CPU back and get a pair of these for just a little more money.

edit: I just read a small discussion about two new projects that are headed to GPU3, P6800 and P6811. Looks like the GTS 450 & 460 are about to tank in points...

p6811 PPD Estimates (Overclocked):

GTS450 - 7000 PPD
GTX460 - 9400 PPD
GTX470 - 14K PPD
GTX480 - 14.5K PPD ** stock clocks

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Mon Nov 15, 2010 5:09 pm
by Apoptosis
Yeah I got some Project: 6800 WU's today... These look much tougher to run and are only 1298 points each. They are taking me 121 seconds per step. So I am able to do 714 steps per day or 7 WU's a day... My estimates show my GTS450 dropping from ~15,600 PPD to ~9,086 PPD if all we get are project 6800's for a bit. Not sure how you got you 7,000 PPD estimate, but that looks way low from what I am getting in results.
[20:10:45] Project: 6800 (Run 406, Clone 0, Gen 8 )
[20:10:45]
[20:10:45] Assembly optimizations on if available.
[20:10:45] Entering M.D.
[20:10:47] Working on PEPTIDE (1-42)
[20:10:47] Client config found, loading data.
[20:10:47] Starting GUI Server
[20:12:48] Completed 500000 out of 50000000 steps (1%).
[20:14:49] Completed 1000000 out of 50000000 steps (2%).
[20:16:51] Completed 1500000 out of 50000000 steps (3%).
[20:18:52] Completed 2000000 out of 50000000 steps (4%).
[20:20:53] Completed 2500000 out of 50000000 steps (5%).
[20:22:54] Completed 3000000 out of 50000000 steps (6%).
[20:24:55] Completed 3500000 out of 50000000 steps (7%).
[20:26:56] Completed 4000000 out of 50000000 steps (8%).
[20:28:58] Completed 4500000 out of 50000000 steps (9%).
[20:30:59] Completed 5000000 out of 50000000 steps (10%).
[20:33:00] Completed 5500000 out of 50000000 steps (11%).
[20:35:01] Completed 6000000 out of 50000000 steps (12%).
[20:37:02] Completed 6500000 out of 50000000 steps (13%).
[20:39:03] Completed 7000000 out of 50000000 steps (14%).
[20:41:04] Completed 7500000 out of 50000000 steps (15%).

Re: Overclocked GeForce GTS 450 Getting ~15k PPD

Posted: Tue Nov 16, 2010 11:51 am
by skier
Apoptosis wrote: Not sure how you got you 7,000 PPD estimate, but that looks way low from what I am getting in results.
7k stock seems semi-accurate


personally at 1730 shaders:

1min 37 ish
[17:39:27] Project: 6800 (Run 486, Clone 0, Gen 3)
[17:39:27]
[17:39:27] Assembly optimizations on if available.
[17:39:27] Entering M.D.
[17:39:29] Tpr hash work/wudata_09.tpr: 3746215936 596123763 920395843 1139183513 731178145
[17:39:29] Working on PEPTIDE (1-42)
[17:39:29] Client config found, loading data.
[17:39:29] Starting GUI Server
[17:41:06] Completed 500001 out of 50000016 steps (1%).
[17:42:42] Completed 1000001 out of 50000016 steps (2%).
[17:44:19] Completed 1500001 out of 50000016 steps (3%).
[17:45:56] Completed 2000001 out of 50000016 steps (4%).
[17:47:32] Completed 2500001 out of 50000016 steps (5%).
makes my GPU run way hotter too (50C load instead of 44C)

so the newer units actually favor more shaders, good for the 460 owners, bad for the new 450 owners
