Need help with an installation diagram for motherboard
Posted: Sat Feb 14, 2009 11:52 pm
by waybrane
i have my friends computer and it has L7VMM3 rev 1.0 C motherboard. and i have somehow messed up where all the cables hook up. i need a good diagram to do that, i hope someone can help. thanks for your time and patience.
Re: Need help with an installation diagram for motherboard
Posted: Sun Feb 15, 2009 7:13 am
by Apoptosis

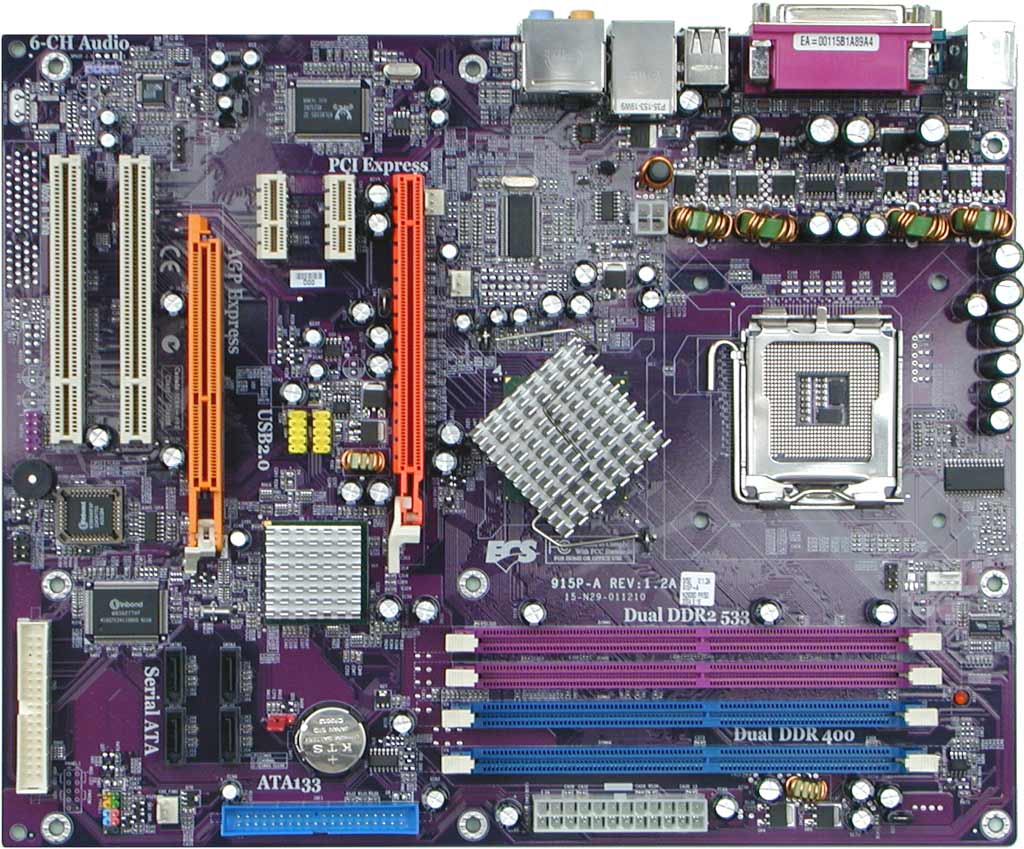

So this board?
- board-big.jpg (156.84 KiB) Viewed 2667 times

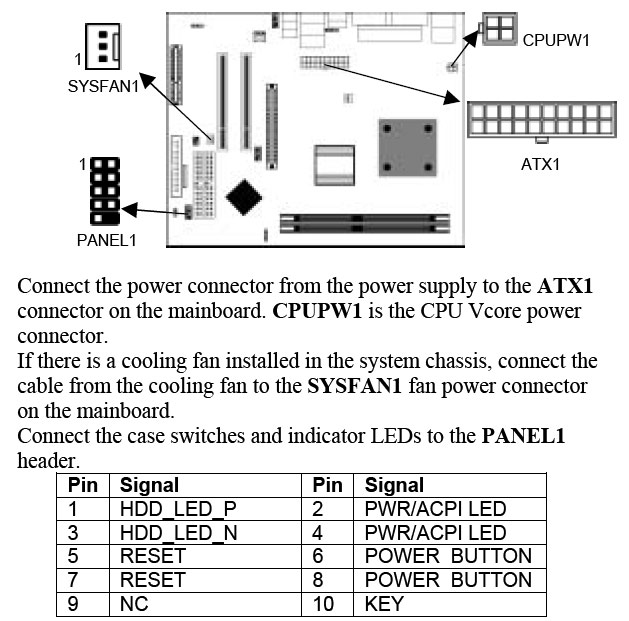

You have two powr connectors... The 24-pin ATX power connector along the bottom of the board and the 4-pin that is located to the just below the LAN (ethernet) port. Both of these need to be connected in order for the board to power up... actually now that i am waking up I think you mean a diagram for the power switch and reset button and all that...
For that this will do it:
- jumpers.jpg (87.38 KiB) Viewed 2664 times
