PII X2 550 OC'ing

Post by skier » Mon Mar 01, 2010 1:48 pm

so i got a PII X2 550 while i wait on what AMD is going to do with my Athlon II quad, last night i thought i should do a bit of overclocking before i went to bed, so i cracked open the window and got to it, heres what i got by ~2:15am(started at ~1am):

Note this is a RB-C3, its not the C2 Black Edition, im restricted to a x15.5 Multiplier or lower

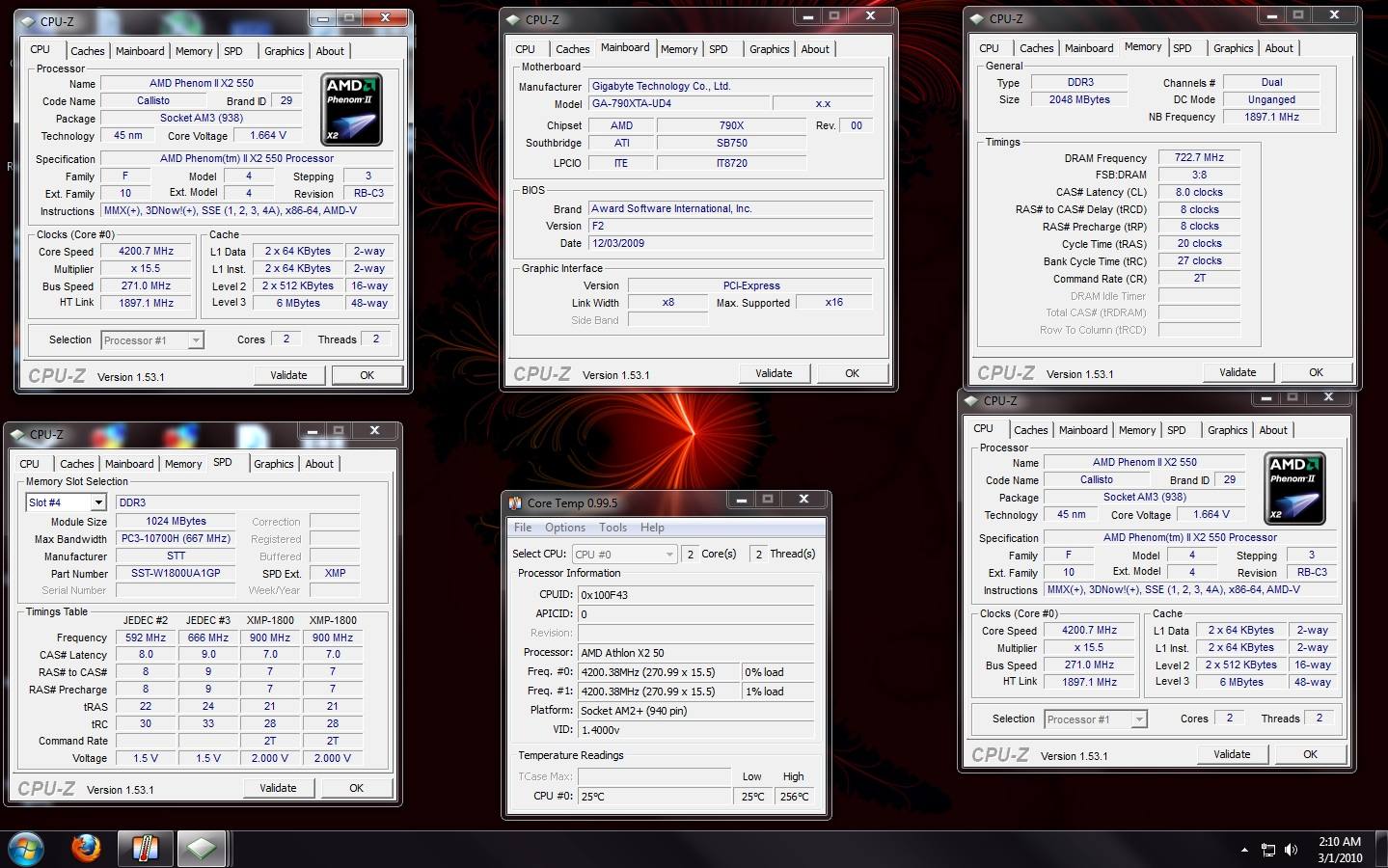

4.2007 GHz
and lol @ 256C high temp ^

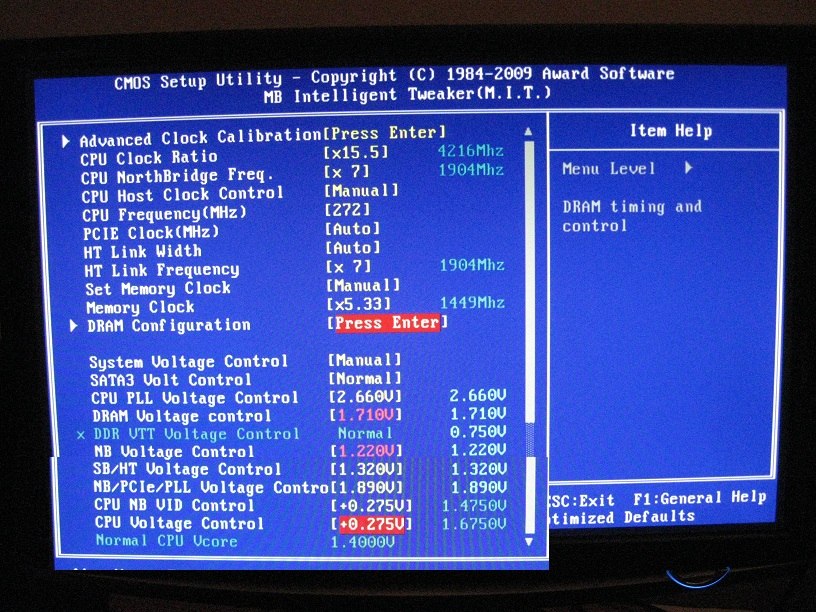

^copied/pasted so it didnt have to be two pics, oh and pretend it says 271/4200 for a frequency, guess i forgot to change it off 272 when it bluescreened during boot, but the voltages and multipliers are all what i used for successful boot at 4200MHz

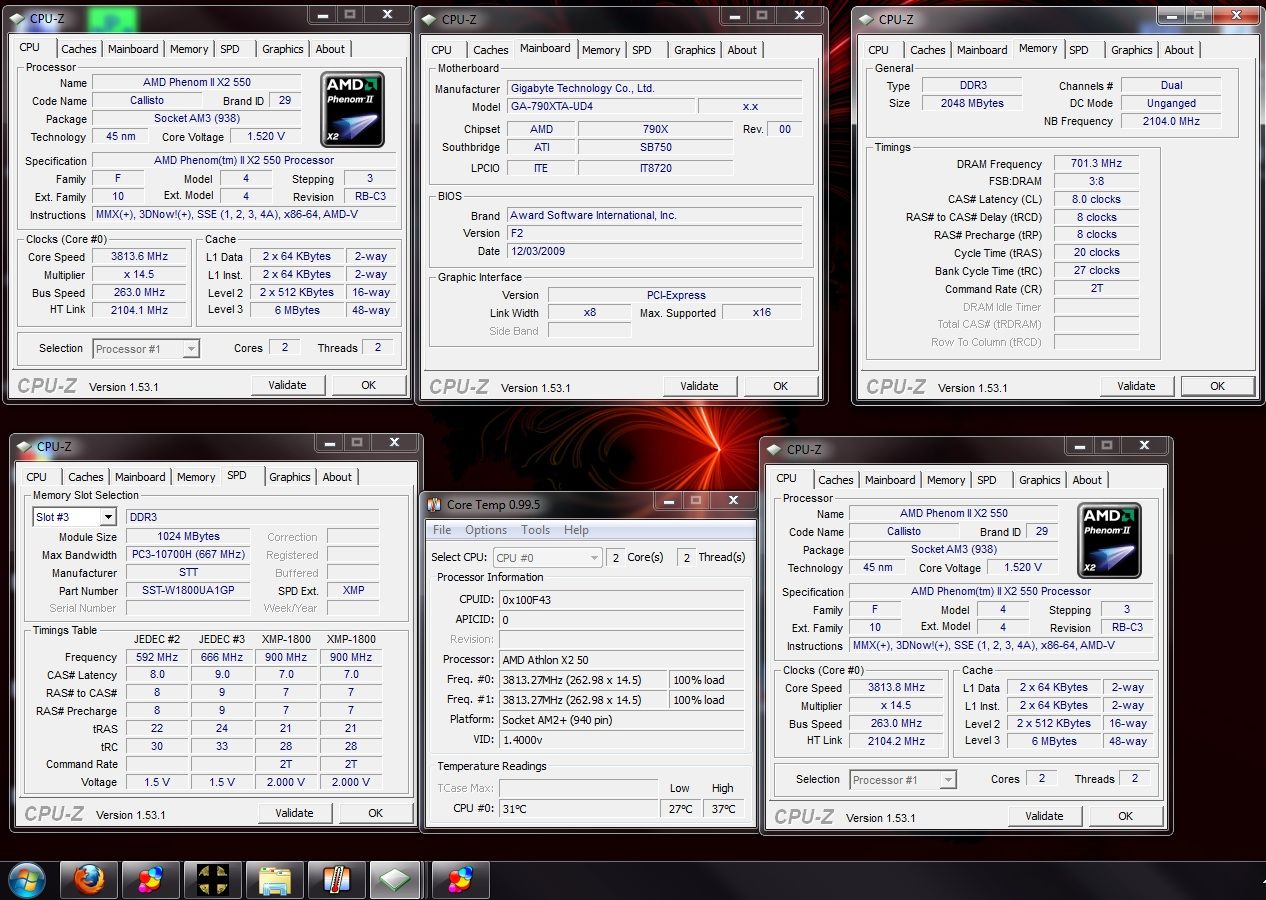

my 24/7 clocks:
it'll be a few days before i'm gonna start fooling with unlocking cores(though i'm 90% sure i can turn it into a quad)

guess in both screens i also forgot to make the last CPUz windows set to the GPU haha
Last edited by skier on Mon Mar 01, 2010 5:11 pm, edited 1 time in total.
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: PII X2 550 OC'ing

Post by Apoptosis » Mon Mar 01, 2010 2:53 pm

wow...4.2Ghz! Very nice
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
Darkstar
Legit Extremist
Legit Extremist
Posts: 1910
Joined: Thu Feb 01, 2007 12:24 pm
Location: San Diego
Contact:

Re: PII X2 550 OC'ing

Post by Darkstar » Mon Mar 01, 2010 4:48 pm

wow is right!

sweet!

:prayer:
Phenom II 1075T,Phenom II 1090T,Intel i7 870
Gigabyte 890XA-UD3
Evga GTX460
8 GB Corsair
Agility2 120GB SSD
Dual 24" Samsungs LCD's

User avatar
TexasScott
Legit Aficionado
Legit Aficionado
Posts: 52
Joined: Sun Jan 03, 2010 1:50 pm
Location: South Texas

Re: PII X2 550 OC'ing

Post by TexasScott » Tue Mar 16, 2010 9:22 pm

I have read the 550 is a very good overclocker but never saw any numbers... 4.2ghz is great.... :shock:

Hope you can get the other 2 cores unlocked....good luck.....

Scott
Case:Cooler Master HAF 922
Mobo: Gigabyte 890GPA-UD3H
Cpu: AMD Phenom II X6 1055T [email protected]
Ram: G. Skill Rip Jaws-- 4gigs DDR3 1600MHz
Gpu: XFX [email protected]/1300
Psu: Silverstone 850w 80+Silver--Modular
Cooler--- Noctua NH-U12P SE2 120mm SSO CPU Cooler
Hdd----2-Samsung Spinpoint F1 320gb IN RAID0
LightScribe------dvd/cd rom player
Lamptron Fan Controller

User avatar
Dizz01
Legit Aficionado
Legit Aficionado
Posts: 54
Joined: Mon Jan 18, 2010 3:21 pm
Location: Orange County, CA

Re: PII X2 550 OC'ing

Post by Dizz01 » Wed Mar 24, 2010 2:45 pm

So this isn't the BE? I have the AMD Phenom II X2 550 BE and right now I'm at 3.9ghz with an x18.5 multiplier. Am I doing the right thing here? Should I change my multiplier down and frequency up? It runs stable at 3.9 but I'd like to see if I can stretch it to 4+ on air. Any suggestions on what I should change?

Side note I tried to run the ACC on my Asus board and my machine rebooted with no luck >.< bummer I guess I'll have to wait til the 6 core and just use that lol
AMD Phenom II x6 1075T @3.3▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂Three Hundred Antec Case
Asus M4A785TD M-EVO▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂500w OCZ Modular PSU
Noctua CPU Cooler▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂500Gig WD HDD
4Gig OCZ Gold Edition 1600 Ram▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂ASUS ATI 7770 2GIG!

User avatar
skier
Moderator
Moderator
Posts: 4450
Joined: Mon Mar 26, 2007 3:29 pm
Location: Maine
Contact:

Re: PII X2 550 OC'ing

Post by skier » Wed Mar 24, 2010 3:50 pm

well actually black editions are much easier to overclock as you can leave it at ~200MHz bus and crank the multi as you give it more voltage(for 4.2GHz i was pushing 1.675v Vcore and it wouldnt boot at 1.7, dont go up to this high voltage at first, start at like 1.5 and get your highest freq. there, then bump the voltage one notch and go as high a freq there and so on)

from what i see for extreme overclocks(4->6+GHz) most people were using a bus of between 200-210MHz and letting the multi do all the work, only one or two people have used a bus higher than i did with a 550, one being 425x15.5 which is the only recorded C3 higher than mine(but thats on LN2 so temps around like -100C ) looks like a lot of people have gotten 20x~205 or 21x~200 at around 1.55v though with the C2's. definitely not a guarantee that you'd be able to, just what some people get with their specific setup, temps are a HUGE factor too, my stock cpu idle temps were around 18C when i started(the 550 does run really cold)

i'm currently at 15.5x246 1.5v stable. 263x14.5 1.55v used to work but just kinda stopped a couple weeks ago, but now i have a higher RAM speed and HT link
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups

User avatar
geokilla
Moderator
Moderator
Posts: 1048
Joined: Thu Mar 15, 2007 9:46 am
Location: Toronto, Canada

Re: PII X2 550 OC'ing

Post by geokilla » Wed Mar 24, 2010 5:10 pm

Any luck with unlocking yet?
Intel Core i5-3570K @ 4.2Ghz @ 1.16V (CPU-Z + LinX)
Gigabyte Z77X-UD5H F14 BIOS
ASUS GTX 460 768MB @ 800/1950
Kingston HyperX DDR3 8GB @ DDR-1333
Corsair AX750
Crucial M4 128GB
Western Digital Black 1TB
Cooler Master Hyper 212+ EVO
BenQ E2420HD
---------------------
