VGA cable

[kappage]

In my VGA cable i have these colors:

Thick Blue:
Thick Red:
Thick Grey:
Thin Orange(or red):
Thin Yellow:
Thin Black:
Thin Green:
Thin White:
Thin Brown:

Wikipedia: http://en.wikipedia.org/wiki/VGA_connector


on the inside of my Touch screen i have 10 things they can go with, which one could possibly go were, on the site below they give these directions

vga pinouts

format is PC gfx card to 4820

1 to 2 red video
2 to 4 green video
3 to 6 blue video
13 to 7 h sync
14 to 9 v sync
5 to 10 ground

may be needed if display little wobbly

6 to 1
7 to 3
8 to 5
all video grounds.

(edit)

RS232 for serial touch screen

2 to 2
3 to 3
5 to 5 gnd

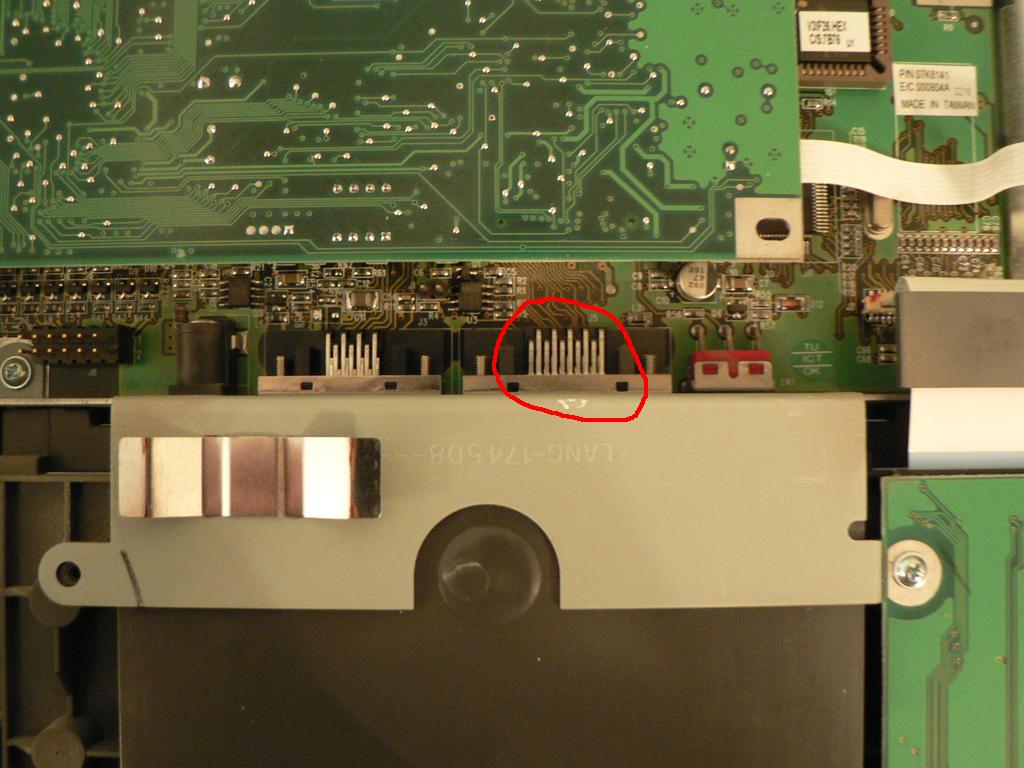

And thats all, The main thing i need to know is Which one is what? here is a pic im pretty sure hes talking about soldering them to this. (below)


If anyone could shed some light on this please do so!

Thanks
Kappage

[Dragon_Cooler]

is this what you need??

http://www.bbdsoft.com/video.html

[kappage]

Yea thats one of the things i needed but what do i solder it to on the other side??? there are the different colors and then i need to solder them onto the ones circled in red.
