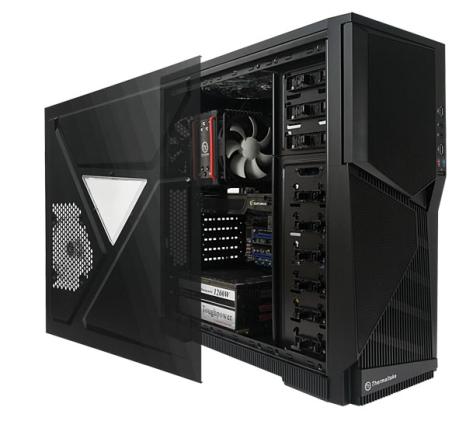

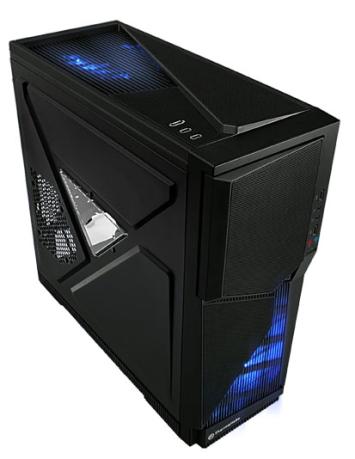

Thermaltake Armor A90 Gaming Computer Case Pictures & Specs

Post by Apoptosis » Thu Apr 08, 2010 7:02 pm

Thermaltake just posted up a webpage on the Armor A90 tonight and they have yet to formally announce the new case. The Armor A90 has the part number VL90001W2Z and will be available for $99.99!
Thermaltake Armor A90 Gaming Case Features:
- Black “bulletproof” armor design with metal mesh elements
- Top and front blue LED-fan enhancing combat ambience
- Massive protective front door for drive access
- Bottom based PSU for optimized cooling
- Big triangular side panel window & 120mm side panel VGA cooling opening
- Liquid Cooling ready! 2 x liquid cooling punch out holes

Thermaltake Armor A90 Gaming Case Specifications:
Part Number VL90001W2Z
Case Type Mid Tower
Material SECC
Front Bezel Material Plastic
Color Black Interior
Black Exterior
Side Panel Transparent Window

Motherboard Support Standard ATX & Micro ATX
Motherboard Tray N/A
5.25" Drive Bay 3
Ext. 3.5" Drive Bay 1 x 3.5" with 5.25" converter
Int. 3.5" Drive Bay 6 (with 1 x 2.5" HDD/SSD)
Expansion Slots 7
Front I/O Ports 4 x USB2.0
1 x e-SATA
HD Audio ports
Cooling System -Front (Intake) :
120 x 120 x 25 mm Blue LED fan, 1000rpm, 16dBA;
120 x 120 x 25 mm (optional) or 200 x 200 x 20 mm (optional)
-Rear (Exhaust) :
120 x 120 x 25 mm TurboFan, 1000rpm, 16dBA
-Top (Exhaust) :
200 x 200 x 20 mm Blue LED fan, 800rpm, 15dBA
-Side (Intake) :
120 x 120 mm (optional)
Liquid Cooling Capable Yes
Liquid Cooling Embedded No
Power Supply Supported Standard ATX PSII
Power Supply Included No
Dimension (H*W*D) 502 (H) x 210(W) x 515 (L) mm
19.8 (H) x 8.3 (W) x 20.3 (L) inch
Net Weight 8.2 Kg / 18.1 Lb
Warranty 3 Year
