Thermalright Silver Arrow CPU cooler

Post by bubba » Mon Jun 21, 2010 9:13 am

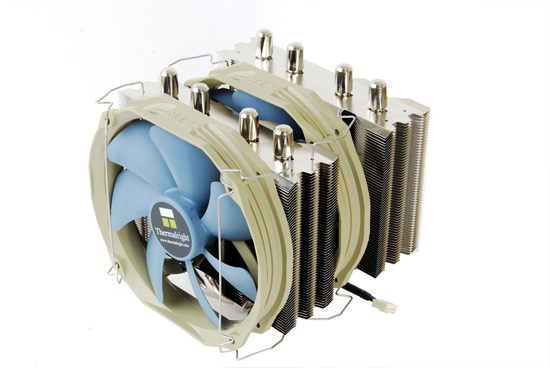

Thermalright announced on their Facebook page this morning the new Silver Arrow CPU cooler. From the looks of it they updated the IFX-14, and slapped a pair of new 140mm PWM fans on it.

* Heatsink Dimensions: Length 147mm x Width 123mm x Height 160mm
* Cooler weight: 825 g (excluding Retention Hardware and Fan) .
* Heat-pipe: 8mm Sintered Heat-pipe x4 units
* Cooler Base Material: C1100 Pure Copper with Nickel Plating
* Fan Compatibly: 120x25mm / 140x25mm / 120x38mm
* Fan dimensions: Length 160mm x Width 25mm x Height 140mm
* Fan Speed: 500~1300RPM
* Fan Air flow: 28~73.6CFM
* Fan Noise Level: 17~21dBA
* 4 X 8mm large sintered heat-pipes efficiently remove excessive heat away from the CPU, allowing for great Overclocking potential
* Nickel Plated Base and Heatpipes, increase the longevity of the heatsink by slowing oxidation and deterioration rates… maintained performance over time

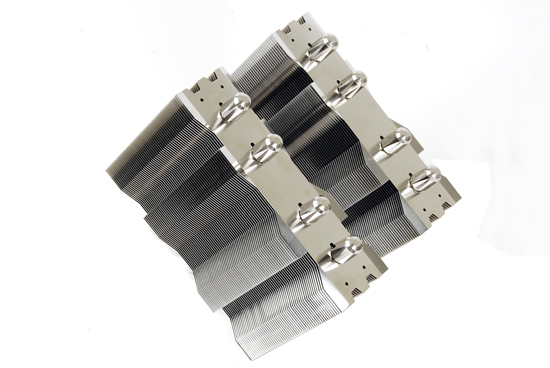

* Double fin stack design, provides each tower with an impressive 147 x 103mm of surface area for heat dissipation
* Special Arrow fin design, which allows cool air to pass through while rapidly moving heat away and maintaining a quiet operating volume
* Soldered Heat-pipes and Copper Base, ensure all components maintain the highest of Thermal Efficiency
* Support for Multiple-Platforms: Intel Socket 1366/1156/775 & AM2/AM3
* Includes Two TY Series Ultra Low noise 160*140*25mm PWN controlled fan
