Had a Hard Drive Start Knocking...

Post by Apoptosis » Mon Apr 19, 2010 7:50 pm

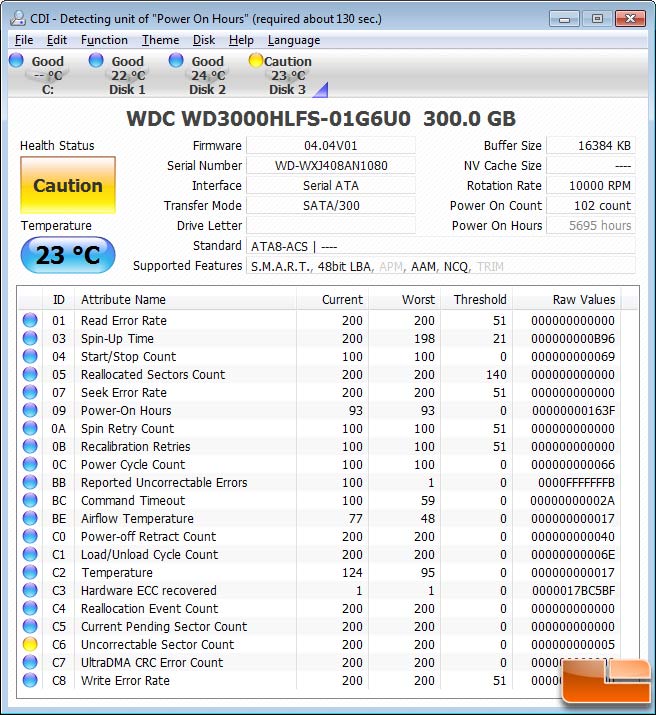

Not what you want to see on your hard drive:
should look like this:
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
geokilla
Moderator
Moderator
Posts: 1048
Joined: Thu Mar 15, 2007 9:46 am
Location: Toronto, Canada

Re: Had a Hard Drive Start Knocking...

Post by geokilla » Mon Apr 19, 2010 9:58 pm

Is there a difference between the two pictures besides the health status?
Intel Core i5-3570K @ 4.2Ghz @ 1.16V (CPU-Z + LinX)
Gigabyte Z77X-UD5H F14 BIOS
ASUS GTX 460 768MB @ 800/1950
Kingston HyperX DDR3 8GB @ DDR-1333
Corsair AX750
Crucial M4 128GB
Western Digital Black 1TB
Cooler Master Hyper 212+ EVO
BenQ E2420HD
---------------------
I AM CANADIAN!

stunts7058
Legit Enthusiast
Legit Enthusiast
Posts: 34
Joined: Tue Apr 13, 2010 5:38 pm
Contact:

Re: Had a Hard Drive Start Knocking...

Post by stunts7058 » Mon Apr 19, 2010 10:01 pm

yea the unrepairable sector count has a yellow dot and has 5 on the top one and none on the bottom one

User avatar
bubba
Staff Writer
Staff Writer
Posts: 4706
Joined: Sun May 01, 2005 10:24 am
Location: STL

Re: Had a Hard Drive Start Knocking...

Post by bubba » Tue Apr 20, 2010 5:32 am

Shows how much ware and tear power cycles has on hard drives.

Bad drive: 102 power cycles in 5695 hours
Health drive: 36 power cycles in 6854 hours
"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
-Thomas Jefferson

User avatar
FZ1
Moderator
Moderator
Posts: 4448
Joined: Mon Dec 27, 2004 6:49 pm
Location: Cincinnati, Ohio
Contact:

Re: Had a Hard Drive Start Knocking...

Post by FZ1 » Tue Apr 20, 2010 6:26 am

At least you have an early warning.
Joe

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Had a Hard Drive Start Knocking...

Post by Apoptosis » Tue Apr 20, 2010 7:44 am

bubba wrote:Shows how much ware and tear power cycles has on hard drives.

Bad drive: 102 power cycles in 5695 hours
Health drive: 36 power cycles in 6854 hours
They came from the same system and were installed on the same day :shock: :shock:

Good thing they were in a big RAID array.
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
bubba
Staff Writer
Staff Writer
Posts: 4706
Joined: Sun May 01, 2005 10:24 am
Location: STL

Re: Had a Hard Drive Start Knocking...

Post by bubba » Tue Apr 20, 2010 9:43 am

Wonder why they were powering up and down differently.
"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
-Thomas Jefferson

User avatar
Sparky
Legit Extremist
Legit Extremist
Posts: 723
Joined: Fri Feb 16, 2007 4:47 pm
Location: Huntington Beach, CA USA

Re: Had a Hard Drive Start Knocking...

Post by Sparky » Tue Apr 20, 2010 8:28 pm

I couldn't tell looking at your screen shots, but what program are you using to monitor your HD's? CDI??? I've used HD Health in the past but yours look much more informative.
Asus X58 Sabertooth|i7 950|CM Hyper 212+|12GB XMS3 PC1600|XFX HD 6870 |Samsung 840 Evo 250 GB SSD|1TB WD Caviar Black SATA 6|1 TB WD Caviar Black SATA 3|X-Fi Titanium|Corsair HX 750|LG Blu-ray Burner|Asus DVD/CD Burner|CM HAF 922|Windows 7 64 Bit

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Had a Hard Drive Start Knocking...

Post by Apoptosis » Wed Apr 21, 2010 2:16 pm

Sparky wrote:I couldn't tell looking at your screen shots, but what program are you using to monitor your HD's? CDI??? I've used HD Health in the past but yours look much more informative.
Yeah Crystal Disk Info - http://crystalmark.info/software/Crysta ... dex-e.html
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
Sparky
Legit Extremist
Legit Extremist
Posts: 723
Joined: Fri Feb 16, 2007 4:47 pm
Location: Huntington Beach, CA USA

Re: Had a Hard Drive Start Knocking...

Post by Sparky » Wed Apr 21, 2010 7:59 pm

Thanks for info and the link. Glad I tried this test. HD Health shows everything fine but as you can see, one of my spares is about to die on me.
Attachments
Maxtorr 300gb.JPG
Maxtorr 300gb.JPG (84.88 KiB) Viewed 3759 times
Asus X58 Sabertooth|i7 950|CM Hyper 212+|12GB XMS3 PC1600|XFX HD 6870 |Samsung 840 Evo 250 GB SSD|1TB WD Caviar Black SATA 6|1 TB WD Caviar Black SATA 3|X-Fi Titanium|Corsair HX 750|LG Blu-ray Burner|Asus DVD/CD Burner|CM HAF 922|Windows 7 64 Bit

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Had a Hard Drive Start Knocking...

Post by Apoptosis » Thu Apr 22, 2010 6:50 am

Attribute Name: Reallocated Sectors Count
Attribute ID: 05
Description: Count of reallocated sectors. When the hard drive finds a read/write/verification error, it marks this sector as "reallocated" and transfers data to a special reserved area (spare area).
This process is also known as remapping and "reallocated" sectors are called remaps. This is why, on a modern hard disks, you can not see "bad blocks" while testing the surface - all bad blocks are hidden in reallocated sectors. However, the more sectors that are reallocated, the more a sudden decrease (up to 10% and more) can be noticed in the disk read/write speed.
You might be able to 'fix' the sectors with a low-level format.
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
kenc51
Legit Extremist
Legit Extremist
Posts: 5167
Joined: Thu Jun 23, 2005 1:56 pm
Location: Dublin, Republic of Ireland
Contact:

Re: Had a Hard Drive Start Knocking...

Post by kenc51 » Thu Apr 22, 2010 12:43 pm

An exceptional bit of software, which has been around for years and is free; is "MHDD"
You can use this to do the low level format as Apoptosis said but if there are unrecoverable sectors, MHDD can nuke them for you.
You loose a little space (couple of MB in most cases), but gain a HDD that performs like new.

If you feel up to it, you could even tell it to kill all sectors that take longer than say ~3msecs to "flip" (go from 1 to 0). This will turn your hdd into a super fast drive, but you'll loose ~3/4 of space on an older disk. :shock:

http://hddguru.com/content/en/software/2005.10.02-MHDD/

Be careful when using as any sectors marked as dead are dead forever, the changes cannot be undone in the hdd firmware even if the sectors are good!

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Had a Hard Drive Start Knocking...

Post by Apoptosis » Thu Apr 22, 2010 6:19 pm

I'd try out Seatools before anything else - http://www.seagate.com/staticfiles/supp ... p-1201.exe
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
Sparky
Legit Extremist
Legit Extremist
Posts: 723
Joined: Fri Feb 16, 2007 4:47 pm
Location: Huntington Beach, CA USA

Re: Had a Hard Drive Start Knocking...

Post by Sparky » Thu Apr 22, 2010 8:27 pm

Apoptosis wrote:
Attribute Name: Reallocated Sectors Count
Attribute ID: 05
Description: Count of reallocated sectors. When the hard drive finds a read/write/verification error, it marks this sector as "reallocated" and transfers data to a special reserved area (spare area).
This process is also known as remapping and "reallocated" sectors are called remaps. This is why, on a modern hard disks, you can not see "bad blocks" while testing the surface - all bad blocks are hidden in reallocated sectors. However, the more sectors that are reallocated, the more a sudden decrease (up to 10% and more) can be noticed in the disk read/write speed.
You might be able to 'fix' the sectors with a low-level format.
Thanks for the article, I read a few last night after I ran the test. I'll just toss another one of my spares in, it's not my master, just a back up drive. I've had the Maxtor that's failing for a few years now so I got my monies worth out of it.
