Intel DX58SO 'Smackover' Motherboard Pictures

[Apoptosis]

Here are some pictures of the pre-production Intel DX58SO Smackover Motherboard for those that want a closer look at this new board and socket.

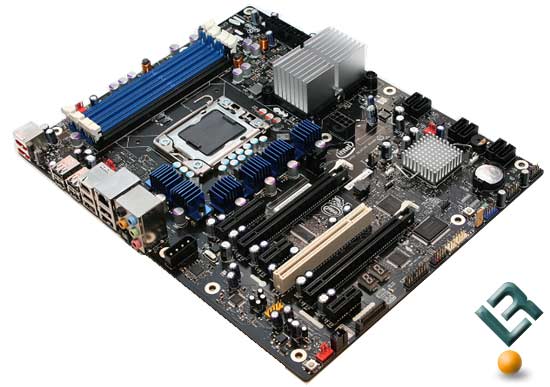

[attachment=0]intel_dx58so_smackover.jpg[/attachment]

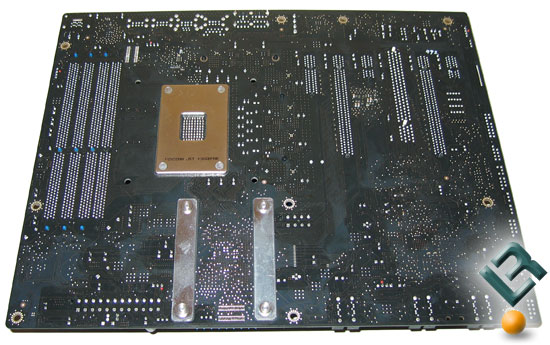

[attachment=1]intel_dx58so_back.jpg[/attachment]

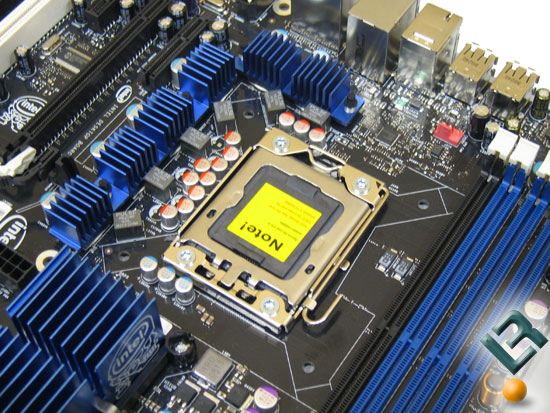

[attachment=3]intel_dx58so_socket.jpg[/attachment]

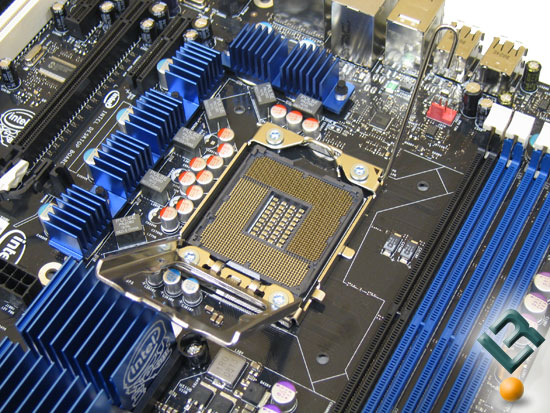

[attachment=4]intel_dx58so_socket2.jpg[/attachment]

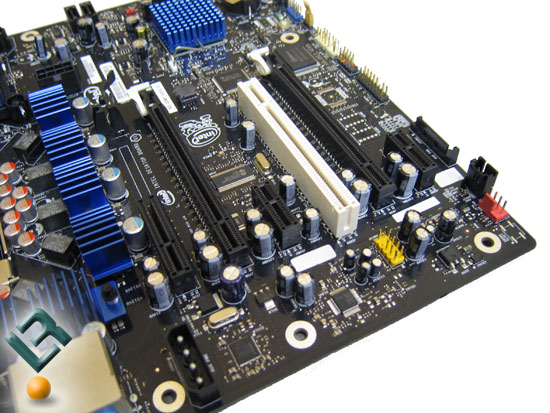

[attachment=2]intel_dx58so_pci.jpg[/attachment]

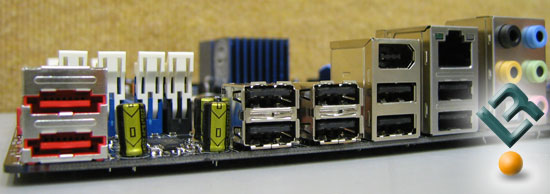

[attachment=5]intel_dx58so_io.jpg[/attachment]

[martini161]

sweet, an intergrated back plate. that'll make hsf changes alot easier. Looks like the northbridge heatsink is kinda blocking air to the socket area though

[mickrussom]

ECC support for the three channels DDR3? I consider all non-ECC boards toys, and any memory without widespread ECC availability "doesn't work" or can't be proven to work reliably.

[DMB2000uk]

ECC support for the three channels DDR3? I consider all non-ECC boards toys, and any memory without widespread ECC availability "doesn't work" or can't be proven to work reliably.

Don't spam the board with random related 'keywords', we don't need it.

Dan

[mickrussom]

Don't spam the board with random related 'keywords', we don't need it.
Dan

Wrong answer. First off, I don't consider what I asked keyword spam. Secondly, does this board/chipset support ECC?

It never ceases to amaze me how a simple question can invoke accusations and hostility. If the comment is not meritorious, let it stand alone as a record of itself and let the computing pubic judge.

Is there some sort of conflict of interest here where Intel's products are somehow beyond reproach. EETimes has, amongst other respected periodicals, have heavily documented the need for ECC to be integrated and present wherever possible. Memory cannot provably work unless it is monitored.

[DMB2000uk]

Did you forget what you actually wrote the last time you posted in this thread??

You listed a whole paragraph of 'related keywords' that was intended to do nothing more than try and improve search engine rankings for this thread. That is by very definition SPAM and is what I was talking about.

Notice I had to edit your post to take that out.

So before you get all high and mighty about thinking you are better than the mods here, question what it was you could have done to provoke one of us into action.

I'm going to recommend that you re-read the forum rules so you know what is expected of you and make sure you note number 9 in particular.

Dan

[dicecca112]

If you have a problem as to how a moderator handled the situation feel free to PM me. But, your post could be misconstrued as spam. We have a zero tolerance policy on spam. Do not disrespect any of the staff here as well. Like I said if you have a problem, then PM me. Disrespect towards anyone will not be tolerated here under any circumstances. Its not a democracy, and if you don't like it, sorry.

[kappage]

I am loving that board! It keeps the CPU away from the PSU! sweet! It should also fix mounting problems of after market coolers from getting to clsoe to ram

[Skippman]

Am I seeing that right that it only has 3 internal SATA connectors and two ESATA connectors?

[DMB2000uk]

I count 6 internal.

You can see them best on picture 6 down the back (to us) side of the board.

Dan
