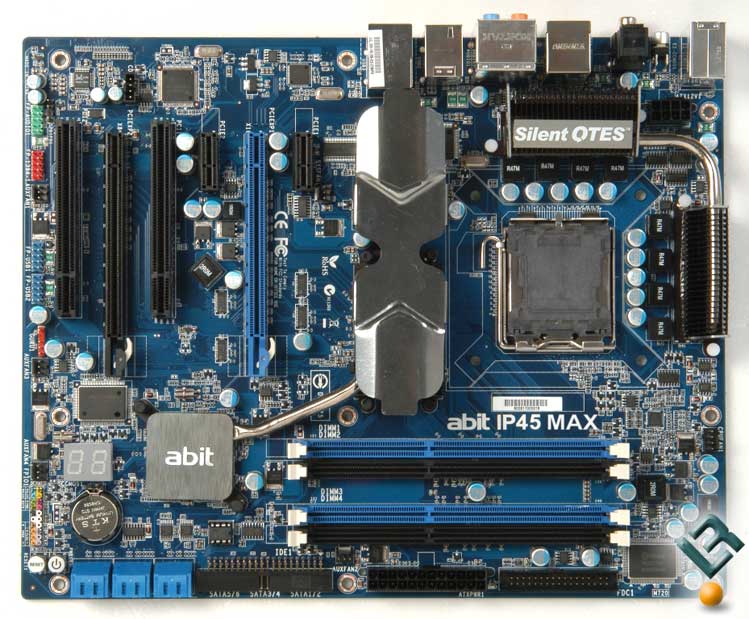

- IP45-MAX_motherboard.jpg (85.85 KiB) Viewed 3597 times
ABIT IP45 MAX Motherboard Features and Pictures
-
Apoptosis
- Site Admin
- Posts: 33941
- Joined: Sun Oct 05, 2003 8:45 pm
- Location: St. Louis, Missouri
- Contact:
ABIT IP45 MAX Motherboard Features and Pictures
abit has the IP45 MAX motherboard on display over at computex and we have the specifications and a picture to share with you!
The IP45-MAX has a pair of x16 PCIe 2.0 slots, two PCIe x1 slots and two PCI slots. Around the back you'll find a PS/2 port, eight USB 2.0 ports, FireWire, two eSATA, 7.1-channel audio with optical and coaxial S/PDIF out, Gigabit Ethernet and a CMOS reset button. This board also has six SATA connectors, headers for a further four USB 2.0 ports and, of course, silent OTES chipset cooling and micro Guru BIOS. Finally, this board has four DDR3 memory slots with support for 1,600MHz DDR3 memory
The IP45-MAX has a pair of x16 PCIe 2.0 slots, two PCIe x1 slots and two PCI slots. Around the back you'll find a PS/2 port, eight USB 2.0 ports, FireWire, two eSATA, 7.1-channel audio with optical and coaxial S/PDIF out, Gigabit Ethernet and a CMOS reset button. This board also has six SATA connectors, headers for a further four USB 2.0 ports and, of course, silent OTES chipset cooling and micro Guru BIOS. Finally, this board has four DDR3 memory slots with support for 1,600MHz DDR3 memory
- Attachments
-

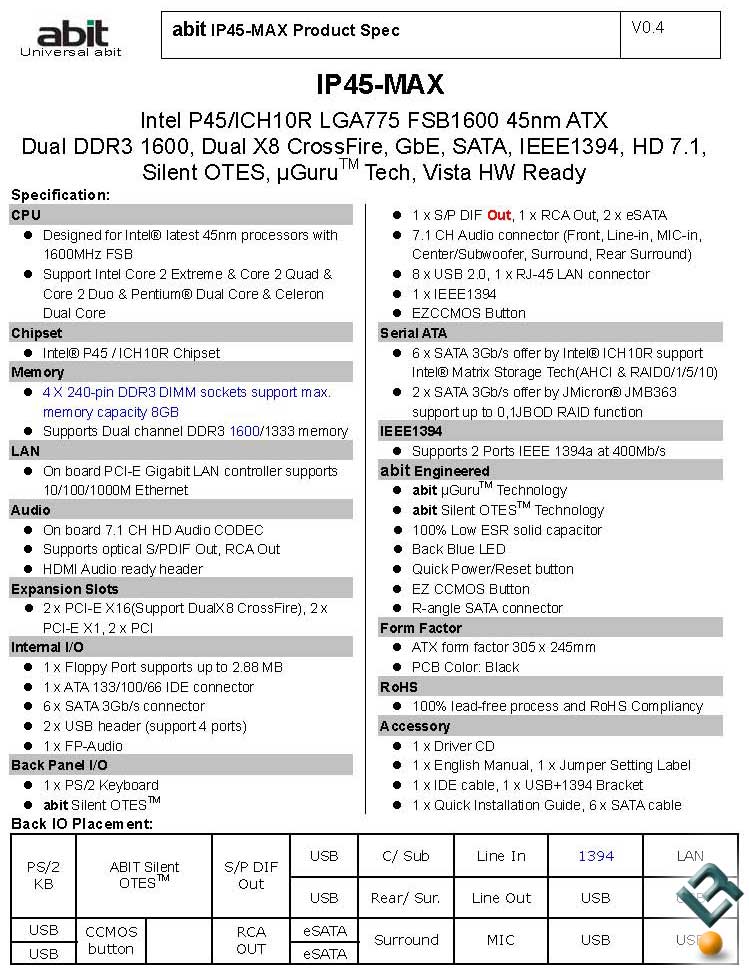

- IP45-MAX.jpg (133.14 KiB) Viewed 3598 times
