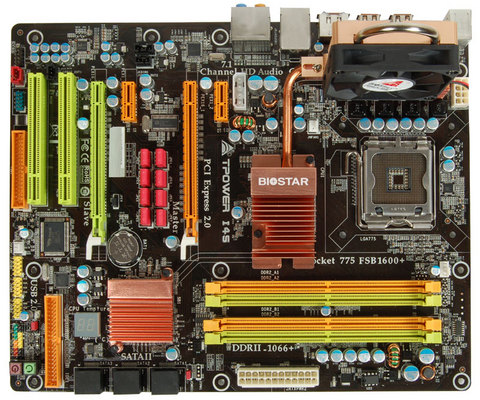

- b20080527.jpg (90.05 KiB) Viewed 4277 times
CPU SUPPORT
# Intel® Core™2 Extreme Processor
# Intel® Core™2 Quad Processor
# Intel® Core™2 Duo Processor
# Intel® Pentium® Dual-Core Processor
# Intel® Celeron® Dual-Core Processor
# Intel® Celeron® Processor 400 Sequence
FSB
# Support FSB 800/1066/1333/1600MHz
MEMORY
# Support Dual Channel DDR2 667/800/1066/1200(OC) MHz
# 4 x DDR2 DIMM Memory Slot
# Max. Supports up to 8GB Memory
EXPANSION SLOT
# 2 x PCI Slots
# 2 x PCI-E x1 Slot
# 2 x PCI-E x16 2.0 Slot (CFX x8)
STORAGE
# 6 x SATA2 3Gb/s Connector
# 2 x eSATA Connector
# 1 x IDE Connector
USB
# 6 x USB 2.0 Port
# 3 x USB 2.0 Header
GbE
# Realtek RTL8111C - 10/100/1000 Controller
CODEC
# Realtek ALC888S 8+2 Channel HD Audio
REAR I/O
# 1 x PS/2 Mouse
# 1 x PS/2 Keyboard
# 2 x eSATA2 3Gb/s Connector
# 6 x USB 2.0 Port
# 1 x RJ-45 Port
# 6 x Audio Connector
INTERNAL I/O
# 3 x USB 2.0 Header
# 6 x SATA2 3Gb/s Connector
# 1 x IDE Connector
# 1 x Floppy Connector
# 1 x Front Audio Header
# 1 x Front Panel Header
# 1 x CD-IN Header
# 1 x S/PDIF-IN Header
# 2 x S/PDIF-OUT Header
# 1 x CPU FAN Header
# 2 x System FAN Header
# 1 x Serial Header
DIMENSION
# ATX Form Factor Dimension: 30.5 cm X 24.4 cm ( W x L )
OS SUPPORT
# Support Windows 2000 / XP / XP 64 / Vista / Vista 64
ACCESSORIES
# 1 x IDE Cable
# 6 x SATA Cable
# 6 x SATA Power Cable
# 1 x S/PDIF Cable
# 1 x I/O Shield
# 1 x CD Driver
# 1 x User Manual
# 1 x DIY Thermal Kit
If this board doesn't float your boat they have a ton more boards they just announced.
BIOSTAR Microtech Int'l Corp., a professional manufacturer of motherboards is launching a top of the line model for Intel platform – TPower I45, a highly tunable performance model. Tunable Performance Out-Of-The-Box. BIOSTAR launches quite a few models for different user groups at different price points. TPower I45, TP45 HP, TP43 HP, TP45D2-A7, TP43D2-A7, P43-A7 collocate with either ICH10R or ICH10.
