ECS X79R-A Motherboard At Computex 2011 - Pictures Inside!

Posted: Tue May 31, 2011 9:52 am
by Apoptosis

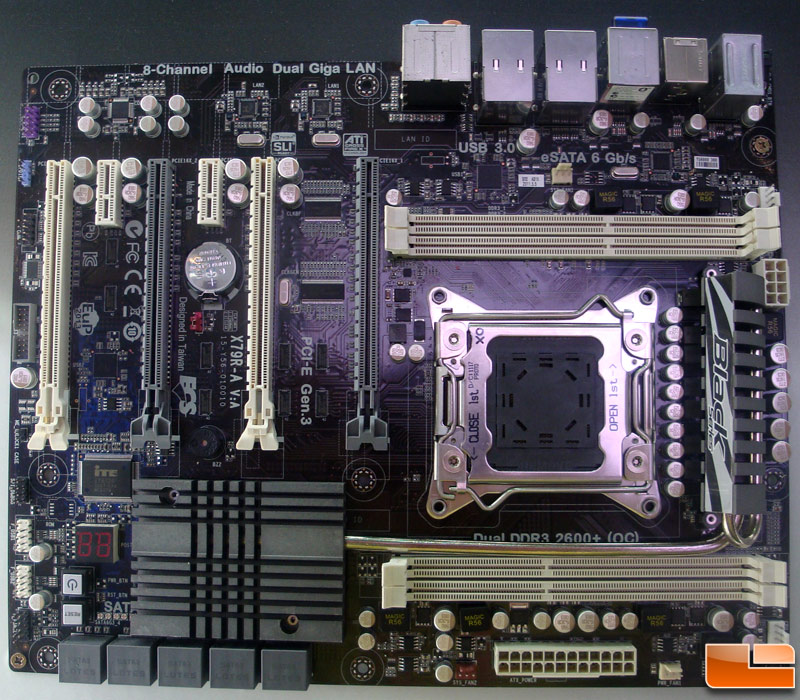

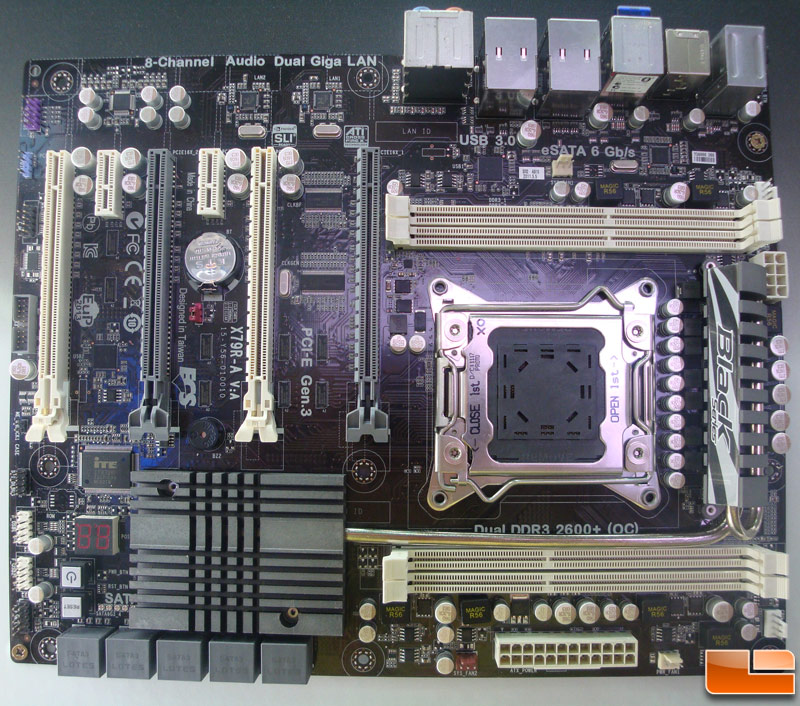

We just received some pictures of the ECS X79R-A motherboard form the ECS booth over at Computex 2011 that are worth a forum post. These new boards look pretty cool. Take a look at the dual lever CPU socket that is being used for LGA2011. That CPU isn't going any place!

Re: ECS X79R-A Motherboard At Computex 2011 - Pictures Insid

Posted: Tue May 31, 2011 11:08 am
by CaptChuck
Split Memory slots...Interesting.

Re: ECS X79R-A Motherboard At Computex 2011 - Pictures Insid

Posted: Tue May 31, 2011 1:49 pm
by DragonFury
interesting layout. I like the color scheme. Any word on the release of the X79 ?

Re: ECS X79R-A Motherboard At Computex 2011 - Pictures Insid

Posted: Tue May 31, 2011 9:11 pm
by bubba
This board is going to make case selection easy, nothing with a shallow depth that is for sure. With the CPU that far forward on the board, and fat heatsink like the Noctua NH-D14, you will be very close to the back of the optical drives on a shallow depth case.

Integrated backing plate to the socket, that's gonna be different. I want to see the back side of that socket.

Gonna be interesting. :-k

Re: ECS X79R-A Motherboard At Computex 2011 - Pictures Insid

Posted: Fri Jun 10, 2011 10:00 am
by skier
i'd replace the grey colors with black

socket layout is different but logical considering the perpetual question of 'will it hit my RAM'

Re: ECS X79R-A Motherboard At Computex 2011 - Pictures Insid

Posted: Sat Jun 11, 2011 10:40 am
by DragonFury
bubba wrote:This board is going to make case selection easy, nothing with a shallow depth that is for sure. With the CPU that far forward on the board, and fat heatsink like the Noctua NH-D14, you will be very close to the back of the optical drives on a shallow depth case.

Or use an inverted motherboard for the new 2011 CPUs
