E7200 OCing <Stock Fan>

Post by skier »

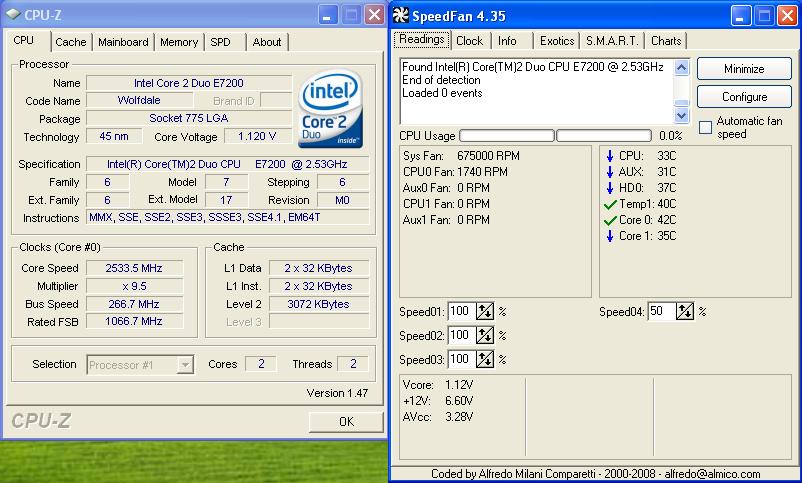

these are certainly nice chips, stock at 2533MHz, and 1.12v with a 266FSB(1066)

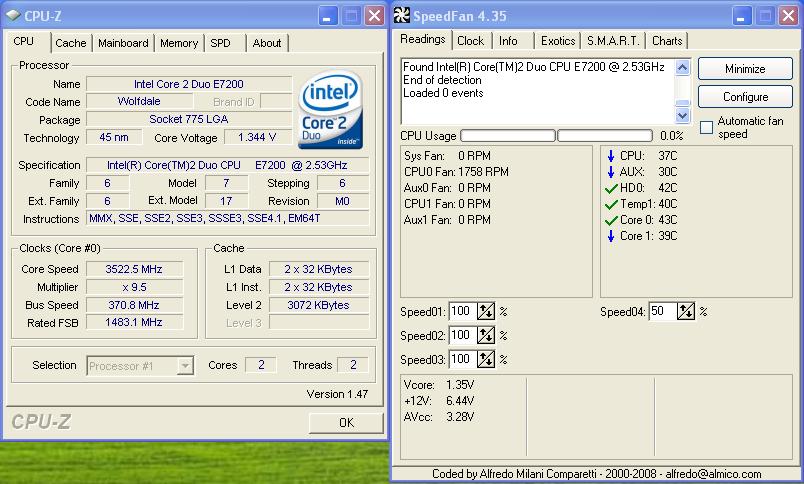

i got up to 3522MHz with 1.34v with a 371FSB(1484) with stock intel cooling mind you
stock
stock
stock CPU.JPG (86.87 KiB) Viewed 3949 times
990MHz OC
990MHz OC
so maybe it wasn't 100% stable and that's a lot of vcore, but that's basically the max, really stable is 3400MHz at 1.28v with a 358MHz FSB; that is my "safe" speed, a major OC, but way under max

temps are both idle, but at load, 3.4GHz gets up to 64C(running SMP FAH for 8+ hours) and at stock, it gets up in the low 50s depending on ambient temps so the OC isnt adding much heat at all

I know this isnt as major an OC as some of you have done, but im going from a Athlon XP 2800+ which can raise the FSB by all of 12MHz, not 105MHz like this :)
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups
User avatar
DMB2000uk
Site Admin
Site Admin
Posts: 7095
Joined: Mon Jul 18, 2005 5:36 pm
Location: UK

Re: E7200 OCing <Stock Fan>

Post by DMB2000uk »

That's a nice little chip you have there!

Must be a nice boost in performance too.

Dan
Image (<- Clickable)
User avatar
geokilla
Moderator
Moderator
Posts: 1048
Joined: Thu Mar 15, 2007 9:46 am
Location: Toronto, Canada

Re: E7200 OCing <Stock Fan>

Post by geokilla »

That's a really nice overclock. As you saw from my thread, I was able to get it up to 3.73Ghz.

Get yourself a cheap aftermarket cooler and keep the temps down. Any cooler will certainly be better than the stock Intel cooler.

Now you can sell your X850XT and get yourself a 9600GSO and call it a day.
Intel Core i5-3570K @ 4.2Ghz @ 1.16V (CPU-Z + LinX)
Gigabyte Z77X-UD5H F14 BIOS
ASUS GTX 460 768MB @ 800/1950
Kingston HyperX DDR3 8GB @ DDR-1333
Corsair AX750
Crucial M4 128GB
Western Digital Black 1TB
Cooler Master Hyper 212+ EVO
BenQ E2420HD
---------------------
I AM CANADIAN!
User avatar
DaIceMan
Legit Extremist
Legit Extremist
Posts: 1599
Joined: Tue Jul 18, 2006 10:31 pm
Location: Springfield-ish, Missouri

Re: E7200 OCing <Stock Fan>

Post by DaIceMan »

Nice job!
Gamer - Thermaltake Element S | PC Power & Cooling Silencer 750 Black | Gigabyte GA-EP45-DS3L | Intel E8400 | Arctic Cooling Freezer 7 Pro | 4GB OCZ Reaper Ram | XFX 8800GTX | Creative X-Fi XtremeGamer | Seagate 7200.10 320GB

HTPC / Folder - Palit 9600GT 1GB Sonic | AMD Phenom 9600 | Corsair DHX 4GB | ECS GF8200A | OCZ StealthXStream 500
Thanks to Palit, AMD, Corsair and ECS for sponsoring the 2008 Folding Give-away!

User avatar
skier
Moderator
Moderator
Posts: 4450
Joined: Mon Mar 26, 2007 3:29 pm
Location: Maine
Contact:

Re: E7200 OCing <Stock Fan>

Post by skier »

geokilla wrote:That's a really nice overclock. As you saw from my thread, I was able to get it up to 3.73Ghz.

Get yourself a cheap aftermarket cooler and keep the temps down. Any cooler will certainly be better than the stock Intel cooler.

Now you can sell your X850XT and get yourself a 9600GSO and call it a day.
right now, i have it a little under 3.4GHz and sub 1.3v, but its really stable(FAH for 10+ hours) and there isnt much of a performance hit between 3.40 and ~3.35 so i'll take the lower temps @ 3.35 or so as a win.

as for the x850, nah, its a very solid card(i can run TF2 at max settings at a dependable 60+ FPS @1440x900) and i ALWAYS want to have a backup card
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups
User avatar
skier
Moderator
Moderator
Posts: 4450
Joined: Mon Mar 26, 2007 3:29 pm
Location: Maine
Contact:

Re: E7200 OCing <Stock Fan>

Post by skier »

once it gets cold out, i'll put the case in the window and see if i can break 4GHz under 1.4v
-Austin
Screamin' BCLK: Image
775 System (Overclocking Platform): Q8400/Q8300/E8400/E7400/E7500 - GA-EP45-UD3R v1.1 - 4GB (2x2) OCZ Reaper HPC DDR2 1066 CL5 2.1v Corsair TX-750w
Gamer: Asrock Z77 Extreme4, i7 3770K @4.6GHz, ThermalTake Armor A90 modded, 2x4GB GSKILL RipjawsX DDR3 2133 CL9, Corsair HX-750w, MSI GTX660 Twin Frozr
Server2012: Q9300 - 8GB DDR2 - Asus P5QL Pro - Corsair CX430 - Mirrored 2TB Seagate's with 2TB WD cav for fileshare backups, 1TB WD for OS backups
User avatar
stopthekilling77
Legit Extremist
Legit Extremist
Posts: 2188
Joined: Fri Feb 02, 2007 2:08 pm
Location: Colorado, USA

Re: E7200 OCing <Stock Fan>

Post by stopthekilling77 »

I'll be having some OC fun with an E7200 pretty soon too :D
Cyberpower generic case
B450M PRO-VDH MAX
Ryzen 5 3600 w/PBO/OC
CM Hyper 212 EVO push/pull
Corsair VENGEANCE LPX 16GB (2 x 8GB) DDR4-3600 CL16
MSI RTX 3060 Ti Ventus 3X 8G OC LHR
Samsung 970 EVO Plus 500GB
6GB Seagate HDD
EVGA 650BQ 650W PSU
ASUS VE278 27" monitor, Dell E2216HV (vertical)
Logitech Z533 2.1 Speakers, G935 7.1 or G435 headset
MS LXM-00001 keyboard
Razer Deathadder Elite, XBOX One Lunar Shift controller

I've come a long way from my original Core2Duo E6750 build y'all! :supz:
