Brand New i7 980 running very hot???

Discussion about Intel CPUs and overclocking. Need help with that new Intel processor? Not sure which one is right for you? Like to void your warranty? This is the place for you! Please keep the topic on Intel Processors!
monrom
Legit User
Legit User
Posts: 5
Joined: Fri Aug 12, 2011 3:14 pm

Brand New i7 980 running very hot???

Post by monrom » Fri Aug 12, 2011 3:21 pm

I received a new custom built (from a reputable company) PC today which I will be using for high end CAD rendering...

To see how it performed I installed a few programmes and set it to render on a large image, monitoring the core temps and load (all 6 of them) I could see it was running at 100% load which is fine but temps were hitting 84 degrees C!!!!!

After leaving it for an hour or so I came back to it to find it shut down and on a re boot got the 'Windows did not shut down properly' screen hinting at an overheat???

I am using a Titan Fenrir Evo Extreme Cooler which should be able to cope with that no problem, or am I wrong?

I will copy the spec of the machine below, let me know what you think!


Case COOLERMASTER COSMOS 1000 SILVER SILENT CASE

Processor (CPU) Intel® Core™i7 Six Core Processor i7-980 (3.33GHz) 4.8GTs/12MB

Motherboard ASUS® P6X58D-E: DDR3, USB 3.0, SATA 6.0GB/s, 3-Way SLI

Memory (RAM) 12GB KINGSTON HYPER-X TRI-DDR3 1600MHz, X.M.P (3 x 4GB KIT)

Graphics Card 1GB AMD RADEON™ HD6850 - 2 DVI,HDMI, DP - DX® 11, Eyefinity 3
Capable

Memory - 1st Hard Disk 1TB WD CAVIAR BLACK WD1002FAEX, SATA 6 Gb/s, 64MB CACHE
(7200rpm)

2nd Hard Disk 1TB WD CAVIAR BLACK WD1002FAEX, SATA 6 Gb/s, 64MB CACHE
(7200rpm)

1st DVD/BLU-RAY Drive 24x DUAL LAYER DVD WRITER ±R/±RW/RAM
Memory Card Reader INTERNAL 52 IN 1 CARD READER (XD, MS, CF, SD, etc) + 1 x USB 2.0
PORT

Power Supply CORSAIR 750W ENTHUSIAST SERIES™ TX750 V2-80 PLUS® BRONZE


Processor Cooling TITAN FENRIR EVO EXTREME HEATPIPE CPU COOLER

Sound Card ONBOARD 8 CHANNEL (7.1) HIGH DEF AUDIO (AS STANDARD)

Network Facilities ONBOARD GIGABIT LAN & WIRELESS 802.11N 300Mbps PCI CARD


USB Options 6 x USB 2.0 PORTS @ BACK PANEL (MIN 2 FRONT PORTS) AS

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Brand New i7 980 running very hot???

Post by Apoptosis » Fri Aug 12, 2011 4:00 pm

The Titan Fenrir is a very good CPU cooler and I have one that I use on the test bench to be honest. I have it on a Core i7-970 right now and it's doing just fine.

If I were you I'd remove the heatsink (be sure you have new thermal compound) and make sure it's seated on the processor correctly. Since you bought a brand new PC it likely got shipped and if they shipped it with the HSF installed it might have gotten knocked or something like that.

The temperatures are too hot for a stock clocked processor. Just curious who did you buy the system from?
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

monrom
Legit User
Legit User
Posts: 5
Joined: Fri Aug 12, 2011 3:14 pm

Re: Brand New i7 980 running very hot???

Post by monrom » Fri Aug 12, 2011 4:18 pm

I bought it from PCSPECIALIST.CO.UK who get good reviews etc and been very happy with past purchases.

How hard is it to remove heatsink > reapply thermal compound > and re attach heatsink, im not 100% tech savvy but prepared to give it a go!

Would you agree that the temps I am getting are not what I should be getting?

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Fri Aug 12, 2011 11:35 pm

Can you post a picture or two of the interior of the case? Pictures are worth a 1,000 words.

User avatar
DJ Tucker
Legit Extremist
Legit Extremist
Posts: 1189
Joined: Tue Dec 30, 2008 11:52 am
Location: Hardbase Headquaters
Contact:

Re: Brand New i7 980 running very hot???

Post by DJ Tucker » Sat Aug 13, 2011 6:07 am

pcspecialist.co.uk are a great company. one of the best for custom built computers and their prices are fantastic! but as is already said i would re-apply the thermal paste as it sounds very much like the heatsink got knocked about causing it to dislodge. i used eclipsecomputer.com and their prices are also fantastic and you can buy individual components but i would never use them to build me a pc as i found out from my 2 mates that had they pc damaged in transport and then when fixed they damaged the pc internaly they are very bad.
Armageddon V1.0
Processor: Core i7 9700k 4.8Ghz (AVX 4.8Ghz) @ 1.248v Barrow 240mm+360mm
Memory: 16Gb Corsair Vengeance LED 2700Mhz 16-16-16-32-1T
Hard Drive: Silicon Power P32A80 128Gb & Sandisk X210 512GB
Video Card: RTX 2070 Heatkiller IV 1950Mhz @ 0.950v
Power Supply: Corsair HX1000i
Monitor: Lenovo L24Q-10 1440P
OS: Windows 10 64 bit Pro
Mobo: ASRock Z390 Phantom Gaming 6
Case: Vector VDM01
Peripherals: K70 Lux, M65 Pro, and Void Pro Wireless

User avatar
Apoptosis
Site Admin
Site Admin
Posts: 33922
Joined: Sun Oct 05, 2003 8:45 pm
Location: St. Louis, Missouri
Contact:

Re: Brand New i7 980 running very hot???

Post by Apoptosis » Sat Aug 13, 2011 6:34 am

monrom wrote:I bought it from PCSPECIALIST.CO.UK who get good reviews etc and been very happy with past purchases.

How hard is it to remove heatsink > reapply thermal compound > and re attach heatsink, im not 100% tech savvy but prepared to give it a go!

Would you agree that the temps I am getting are not what I should be getting?
It's rather easy and takes under five minutes to do. Yes, I agree the temperatures that you are seeing are too high for that aftermarket CPU Cooler.
Find us on Facebook to discover the faces behind the names!
Follow Me on Twitter!

User avatar
sbohdan
Legit Extremist
Legit Extremist
Posts: 1267
Joined: Sun Jul 17, 2005 9:33 am
Location: Canada
Contact:

Re: Brand New i7 980 running very hot???

Post by sbohdan » Sat Aug 13, 2011 12:13 pm

monrom wrote:I bought it from PCSPECIALIST.CO.UK who get good reviews etc and been very happy with past purchases.

How hard is it to remove heatsink > reapply thermal compound > and re attach heatsink, im not 100% tech savvy but prepared to give it a go!

Would you agree that the temps I am getting are not what I should be getting?
@ stock speed and full load it shouldn't be going over 55C with that cooler and yes 84C is waaaaaaaaaayyyy to high. You can easily fry the CPU and motherboard. It is easy to replace the CPU cooler and I would get a good quality paste (tuniq TX-2 or 3?) to get the best results. Good luck. On how to remove and replace the cooler, just google it :rolleyes:
Main rig: NZXT Phantom modded case with Danger Den WC, MSI Tomahawk B350, Ryzen 1700X @ 3.4Ghz, 16GB Patriot Viper DDR4 3200Mhz 16-18-18-36, MSI GTX 1060 3GT OC, Asus 24" 1ms 144hz, Intel P7600 256Gb nvme PCiE, Samsung 2TB; PC P&C 750W, Win10 Pro 64
Laptop: Dell XPS 1530 (T9500; 4GB 800 RAM; 120GB Crucial SSD; 8600GT; WIN7 64bit)
my complete GFX tuneup & cooling mod: http://forums.legitreviews.com/viewtopi ... highlight=

monrom
Legit User
Legit User
Posts: 5
Joined: Fri Aug 12, 2011 3:14 pm

Re: Brand New i7 980 running very hot???

Post by monrom » Sat Aug 13, 2011 3:59 pm

Ok well spoke to PCS today, they were telling me it's normal for the 980 to run at 80 degrees C and then told me to go into the Bios and change fan modes from 'Standard' to 'Turbo' which I did! The outcome, no difference what so ever, still not convinced it's normal to be running at 80 degrees C on 100% load! What does anyone else get on a similar i7 on Prime?

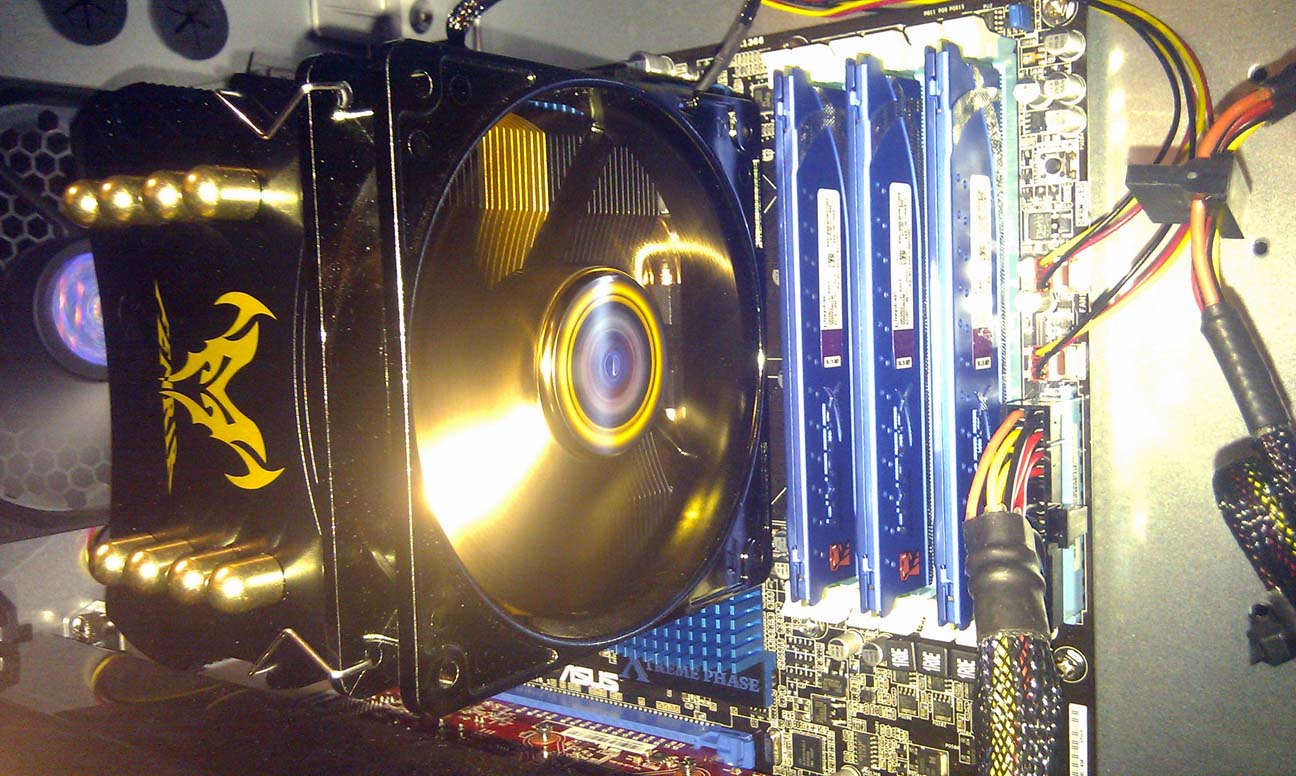

I have attached two pictures but not sure how helpful they might be, anyone care to point me in the direction of some good instructions of how to remove and re-install a heat sink? Also I have given the Fenrir a wobble while off and cant say it feels particularly loose! The system idles at 36 or so but seems to go through the roof with load!

Thanks again!
Attachments

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Sat Aug 13, 2011 11:56 pm

Does the cooler use the Intel Push-Pin setup?
http://www.google.com/search?hl=en&biw= ... a=N&tab=wi

Or does it use a different mounting system?

Since you say it feels loose then it isn't right. Even with the crappy push-pin setup it still shouldn't move. I have a huge Scythe push-pin cooler and when all the pins are locked the cooler doesn't move.

User avatar
sbohdan
Legit Extremist
Legit Extremist
Posts: 1267
Joined: Sun Jul 17, 2005 9:33 am
Location: Canada
Contact:

Re: Brand New i7 980 running very hot???

Post by sbohdan » Sun Aug 14, 2011 2:15 am

monrom wrote:Ok well spoke to PCS today, they were telling me it's normal for the 980 to run at 80 degrees C and then told me to go into the Bios and change fan modes from 'Standard' to 'Turbo' which I did! The outcome, no difference what so ever, still not convinced it's normal to be running at 80 degrees C on 100% load! What does anyone else get on a similar i7 on Prime?

I have attached two pictures but not sure how helpful they might be, anyone care to point me in the direction of some good instructions of how to remove and re-install a heat sink? Also I have given the Fenrir a wobble while off and cant say it feels particularly loose! The system idles at 36 or so but seems to go through the roof with load!

Thanks again!
If they told you that 84C @ load is normal, then they are plain stupid. here is a review from LR: http://www.legitreviews.com/article/979/17/

As you see your temps should be about 55C as I wrote before (@ stock speed) and about 66C @ 3.5Ghz OC.

To remove the cooler, remove the RAM and the graphics card, so you have easy access to the cooler's base. Next Just just unscrew with your thumb the 4 thumb screws that attach the cooler:

http://photo.hardwarebistro.com/albums/ ... rir_33.jpg

After reaplying the thermal paste just put back the cooler and screw them back. Remember not to put too much paste, just a thin even layer on the CPU (after cleaning off the old paste).
Main rig: NZXT Phantom modded case with Danger Den WC, MSI Tomahawk B350, Ryzen 1700X @ 3.4Ghz, 16GB Patriot Viper DDR4 3200Mhz 16-18-18-36, MSI GTX 1060 3GT OC, Asus 24" 1ms 144hz, Intel P7600 256Gb nvme PCiE, Samsung 2TB; PC P&C 750W, Win10 Pro 64
Laptop: Dell XPS 1530 (T9500; 4GB 800 RAM; 120GB Crucial SSD; 8600GT; WIN7 64bit)
my complete GFX tuneup & cooling mod: http://forums.legitreviews.com/viewtopi ... highlight=

monrom
Legit User
Legit User
Posts: 5
Joined: Fri Aug 12, 2011 3:14 pm

Re: Brand New i7 980 running very hot???

Post by monrom » Sun Aug 14, 2011 1:32 pm

Ok, a breakthrough at last, noticed one of the mounting screws was a bit loose, tightened it up (a-lot) and presto, max temps on 100% load are now 61 Degrees C, surprised that PCS missed something like that! Is 61 Degrees C a good temp to be getting at 100% load or should I be on the phone to them asking for better?

No idea what thermal compound they might have used perhaps I should buy a good one and try and re-apply everything!

Once again thanks for all the help guys!

oh and according to 'Core Temp 0.99.8 Frequency is running at 3474.23, I was pretty sure stock speeds were 3.33??? or is this the intel 'Turbo Boost' at work here?

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Sun Aug 14, 2011 2:27 pm

I think that chip has different frequencies (Turbo Boost) depending on how many cores are being loaded. I think you should call and tell them you had to tighten down one of the screws. If nothing else have them make a note of it in case something happens down the road.

User avatar
sbohdan
Legit Extremist
Legit Extremist
Posts: 1267
Joined: Sun Jul 17, 2005 9:33 am
Location: Canada
Contact:

Re: Brand New i7 980 running very hot???

Post by sbohdan » Sun Aug 14, 2011 2:53 pm

monrom wrote:Ok, a breakthrough at last, noticed one of the mounting screws was a bit loose, tightened it up (a-lot) and presto, max temps on 100% load are now 61 Degrees C, surprised that PCS missed something like that! Is 61 Degrees C a good temp to be getting at 100% load or should I be on the phone to them asking for better?

No idea what thermal compound they might have used perhaps I should buy a good one and try and re-apply everything!

Once again thanks for all the help guys!

oh and according to 'Core Temp 0.99.8 Frequency is running at 3474.23, I was pretty sure stock speeds were 3.33??? or is this the intel 'Turbo Boost' at work here?
If you don't intend to OC further, than you are OK. If you do, than every degree counts. I would get a tuniq TX-2 if I was you but I'm not you :)
http://www.amazon.com/TUNIQ-TX-2-PERFOR ... 987&sr=8-4
Main rig: NZXT Phantom modded case with Danger Den WC, MSI Tomahawk B350, Ryzen 1700X @ 3.4Ghz, 16GB Patriot Viper DDR4 3200Mhz 16-18-18-36, MSI GTX 1060 3GT OC, Asus 24" 1ms 144hz, Intel P7600 256Gb nvme PCiE, Samsung 2TB; PC P&C 750W, Win10 Pro 64
Laptop: Dell XPS 1530 (T9500; 4GB 800 RAM; 120GB Crucial SSD; 8600GT; WIN7 64bit)
my complete GFX tuneup & cooling mod: http://forums.legitreviews.com/viewtopi ... highlight=

User avatar
kenc51
Legit Extremist
Legit Extremist
Posts: 5167
Joined: Thu Jun 23, 2005 1:56 pm
Location: Dublin, Republic of Ireland
Contact:

Re: Brand New i7 980 running very hot???

Post by kenc51 » Mon Aug 15, 2011 10:36 am

May be im missing something, but how are you recording your temps?

User avatar
hark
Legit Extremist
Legit Extremist
Posts: 362
Joined: Tue Jan 05, 2010 3:02 am

Re: Brand New i7 980 running very hot???

Post by hark » Tue Aug 16, 2011 1:56 am

kenc51 wrote:May be im missing something, but how are you recording your temps?
I don't know what the topic creator used, but I use CoreTemp: http://www.alcpu.com/CoreTemp/

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Tue Aug 16, 2011 8:02 am

kenc51 wrote:May be im missing something, but how are you recording your temps?
If I had to guess it's probably ASUS's PC Probe. I'd imagine the OEM probably just inserted the disc that came with the motherboard and told it to install all of the software on the disc.

monrom
Legit User
Legit User
Posts: 5
Joined: Fri Aug 12, 2011 3:14 pm

Re: Brand New i7 980 running very hot???

Post by monrom » Tue Aug 16, 2011 6:30 pm

Yea, it's 'Core Temp 0.99.8' it's meant to be relatively accurate. I now have the cores running at an acceptable temperature (63 deg C at 100% load), thanks for the help! I rang PCS again who said again 85 degrees C was quite normal and in THEIR testing found that the optimum temp for an i7 980 was 85 - 90 degrees C!!!!! Somehow I think they just did not want to pay for a return and re-deliver as these temps are ludicrous! But im happy with temps I have now!

Although....as an after thought any ideas as to why cores 5 and 6 are running 8 degrees (give or take) higher than 1,2,3,4? Termal paste position???

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Wed Aug 17, 2011 11:30 am

monrom wrote:I rang PCS again who said again 85 degrees C was quite normal and in THEIR testing found that the optimum temp for an i7 980 was 85 - 90 degrees C!!!!!

Although....as an after thought any ideas as to why cores 5 and 6 are running 8 degrees (give or take) higher than 1,2,3,4? Termal paste position???
Then they're idiots. With the stock cooler that CPU hits the 70s C.

The 5-6 cores might not be making as good of contact with the HSF base. They could also be working harder, for whatever reason. My Core #3 on my Q9550 tends to run hotter than the other 3. I guess that's just the way it goes some times. Download the Super Pi build that tests each core and comes back with an average (sorry forgot the name). I can almost guarantee you that the 5th and 6th cores will have a faster completion time than the others (was the case with me an my core #3).

User avatar
XstollieX
Staff Writer
Staff Writer
Posts: 1641
Joined: Mon Mar 24, 2008 10:51 am
Contact:

Re: Brand New i7 980 running very hot???

Post by XstollieX » Wed Aug 17, 2011 1:51 pm

Major_A wrote:
monrom wrote:I rang PCS again who said again 85 degrees C was quite normal and in THEIR testing found that the optimum temp for an i7 980 was 85 - 90 degrees C!!!!!

Although....as an after thought any ideas as to why cores 5 and 6 are running 8 degrees (give or take) higher than 1,2,3,4? Termal paste position???
Then they're idiots. With the stock cooler that CPU hits the 70s C.

The 5-6 cores might not be making as good of contact with the HSF base. They could also be working harder, for whatever reason. My Core #3 on my Q9550 tends to run hotter than the other 3. I guess that's just the way it goes some times. Download the Super Pi build that tests each core and comes back with an average (sorry forgot the name). I can almost guarantee you that the 5th and 6th cores will have a faster completion time than the others (was the case with me an my core #3).
I believe your thinking about hyper-pi, runs an instance of Super-pi on each of the cores

User avatar
Major_A
Legit Extremist
Legit Extremist
Posts: 3793
Joined: Tue May 15, 2007 2:11 pm
Location: Houston, TX

Re: Brand New i7 980 running very hot???

Post by Major_A » Wed Aug 17, 2011 3:03 pm

That's the app, thanks for the name.
http://www.virgilioborges.com.br/hyperpi/
